In Depth

Drag & Drop from the Object List Pane

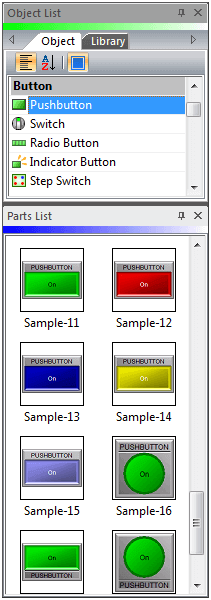

Object List

The Object list contains all the C-more objects arranged in logical groups.

Drag objects from the object list to the workspace to create screens.

The Object List Pane also allows access to the User Library . Save your configured objects, graphics, and sounds in the User Library for re-use on other screens, and future projects.

Show User Library

Parts List

The Parts List shows preconfigured variations of many objects. Drag and drop parts from the Parts List onto the workspace (just like objects). Save time by starting with the configuration that closely matches your desired style.
