C-more EA9 Series: Communicate any way you want

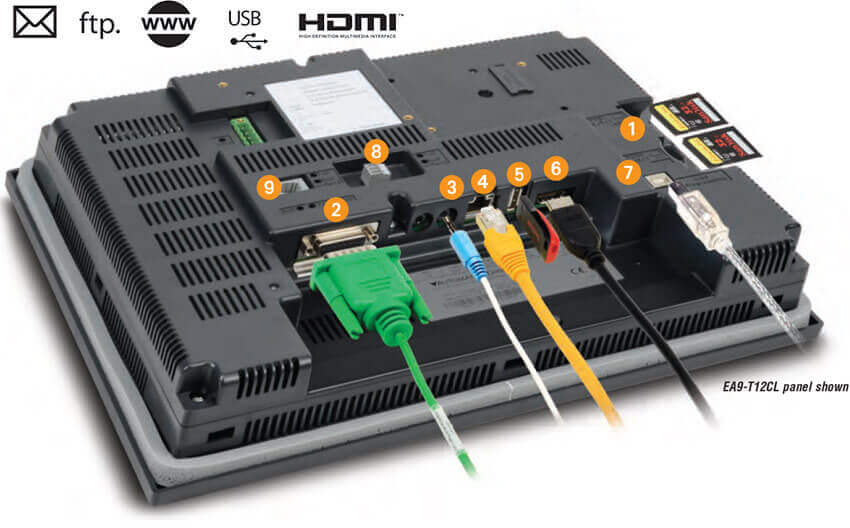

C-more was designed to offer the widest range of connectivity options of any PLC touch panel in it's class.

Built-in SD Card port Supports SD memory cards; used for data logging or user program transfer/operation ( 6 through 10-inch panels support one SD card, 12 and 15-inch panels support two SD cards)

Serial Communication ports RS-232, RS-422/485 port, connects to numerous brands including Allen-Bradley, GE, Omron, Mitsubishi, AutomationDirect and more

Audio Line out¹ For amplifiers and speakers; allows .wav files to be played when a specified event occurs

10/100 Base-T Ethernet Auto MDI/MDI-X Upload/download programs over network, connect to many brands of PLC/PACs (A-B EtherNet/IP, Modbus TCP/IP, DirectLOGIC ECOM, and the Productivity Series), connect to standard Ethernet switches, etc.

USB Port-A Accepts USB devices such as memory sticks, keyboards, barcode scanners, etc.

HDMI Video out on EA9-T12CL and EA9-T15CL panels Allows for HDMI output to other HDMI display devices. Use HDMI cable to output the active C-more screen to other display devices.

USB Port-B Simple programming port connection to PC

3-pin RS485 Communications port¹

RJ12 RS232 Communications port¹

¹ Not available on Base Models
(EA9-T6CL-R and EA9-T15CL-R)
