C-more EA9 Series: Mechanical Features
Choose a feature to learn more...
C-more Certifications & Ratings
C-more Certifications & Ratings
- NEMA 4/4x (when mounted correctly, indoor use only)
- IP65 (when mounted correctly, indoor use only)
- UL Listed and CUL Listed
- UL508
- Type 4
- CE Compliant
- EN61131-2

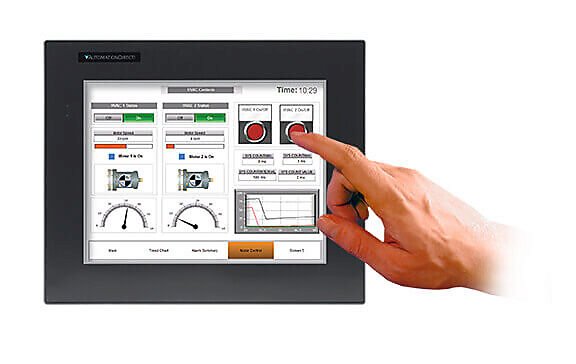

C-more High Resolution Touch Sensor
C-more offers high resolution touch overlays on all panels.
C-more uses an analog resistive touch overlay technology which is more reliable and provides a touch resolution that is actually higher than the pixel resolution of the screen.
This technology gives designers the ability to size buttons and other touchable-objects to any size. The familiar grid and snap functions are still available within the C-more programming environment to help you arrange objects on your screens, but your design is no longer locked into this grid.
Some other manufacturers use a grid of touch cells, some as large as 40 pixels square. On a 320 x 240 panel, this means only 48 touch cells. The 640 x 480 models have only 192 cells. This causes major limitations with button placements, and the sizing of objects on the screen. Your design is forced to fit onto the touch cell grid.

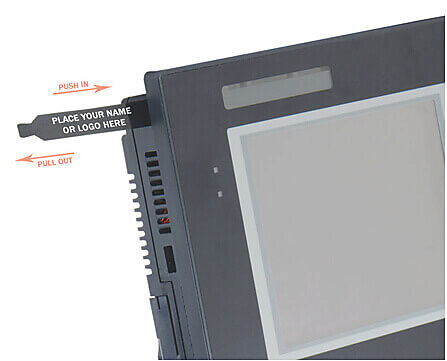

Replaceable OEM Label
Replaceable OEM Label
Equipment manufacturers will be pleased to see that the C-more panel can be "branded" with the manufacturer's own name or logo. The HMI is often a focal point for the machine, and now your logo can be front and center (well, in the upper, left corner anyway).
Blank label insert for front bezel, replacement, for C-more EA9 series touch panels. Package of 10.

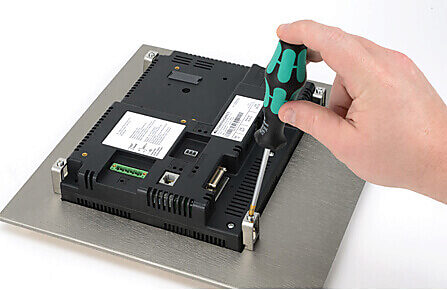

Mounting Brackets
Mounting Brackets
C-more mounting clips offer fast and secure mounting in any control enclosure, they facilitate a sealed NEMA 4/4X (IP65) installation, and the mounting design requires only a simple rectangular hole in the mounting surface. Mounting surface thickness can vary widely from: 0.039 - 0.20inch(1 - 5mm).
Package of 8 brackets and screws.
Brackets ship with each panel. Replacement brackets (for C-more EA9 series touch panels) are available here:
