C-more EA9 Series: Supported PLCs and Drivers
C-more Drivers for all Major PLC Brands
C-more supports PLC communications to/from all the major brands of PLCs. C-more can even communicate with multiple PLCs simultaneously , and over the same cable in some cases.
Here's the list of all supported PLC Protocols
Ethernet drivers are shown in Blue

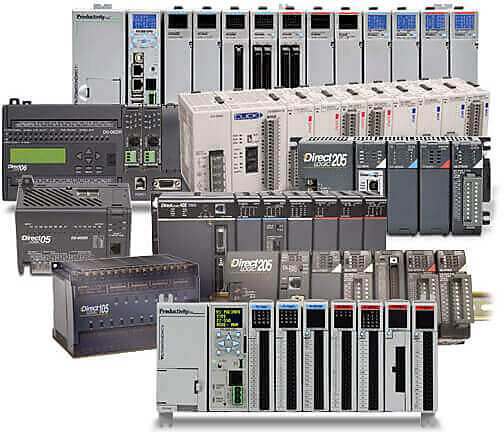

ALL AutomationDirect PLCs:
- K-Sequence (DL05/06/105/205/350/405)
- DirectNET (DL05/06/105/205/350/405)
- DirectNET (DL330/340)
- Modbus (DL05/06/205/350/405)
- Modbus (CLICK)
- ECOM Ethernet (DL05/06/205/405) Ethernet
- Productivity Serial
- Productivity Ethernet
- Do-more Serial
- Do-more Ethernet
- GS Drives Serial
- GS Drives TCP/IP (GS-EDRV)
- SOLO Temperature Controller
Modicon:
- Modbus RTU
- Modbus TCP/IP Ethernet

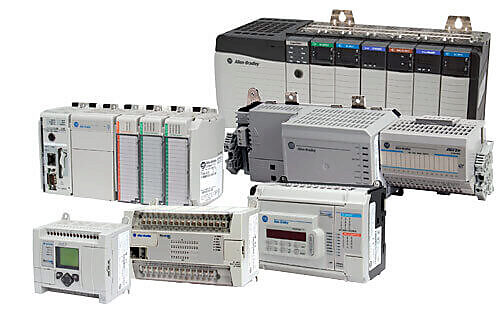

Allen-Bradley:
- AB DF1 Full Duplex (MicroLogix)
- AB DF1 Full Duplex (SLC500)
- AB DF1 Full Duplex (PLC5)
- AB DF1 Full Duplex Tag-Based (Control/CompactLogix/FlexLogix)
- AB DF1 Half Duplex (MicroLogix/SLC500)
- AB DF1 Half Duplex Tag-Based (Control/CompactLogix/FlexLogix)
- AB DH485 (MicroLogix/SLC500/AIC)
- AB EtherNet/IP Client (MicroLogix 1100/1400)
- AB EtherNet/IP Client (SLC5/05/ENI Adapter)
- AB EtherNet/IP Client Tag-Based (Control/CompactLogix/FlexLogix)
- AB EtherNet/IP Server Generic IO Messaging (Control/CompactLogix/FlexLogix)
Entivity PC Based Control:
- Modbus RTU (H2-WinPLC)
- Modbus TCP/IP Ethernet (H2-WinPLC)
Siemens:
- S7-200(Serial: PPI)
- S7-200(Ethernet: ISO over TCP/IP)
- S7-300(Ethernet: ISO over TCP/IP)
GE:
- 90/30 SNPX (90/30, 90/70, Micro90, VersaMax Micro)
- STRP Ethernet (90/30, Rx3i)
Mitsubishi:
- FX Series CPU
- Q Series (Q02, Q02H, Q06H, Q12H, Q25H CPU)
- Q/QnA Serial
- Q/QnA Ethernet
- Q Series (Q02, Q02H, Q06H, Q12H, Q25H CPU)
Omron:
- Host Link Adapter (C200/C500)
- FINS Serial (CS/CJ)
- FINS Ethernet (CS/CJ)
Import tags from your AB PLC
C-more also has ControlLogix® Ethernet/IP Tag Messaging support. This feature helps increase productivity by reducing the time required to map your PLC tag database into the HMI. You can import the RSLogix 5000 L5K file directly or with just a few clicks of the mouse you can directly enter your ControlLogix/ CompactLogix tags from the PLC into C-more. No mapping or translation required!
Click here for a pdf of the PLC Compatibility Table (including cables)
Note:
C-More can connect to multiple PLCs and different brands of PLCs simultaneously! C-more can even act as an interpreter or "protocol bridge", passing PLC tag values back-and-forth between separate PLC protocols.

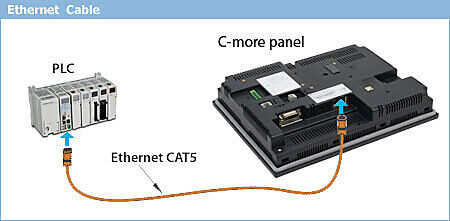

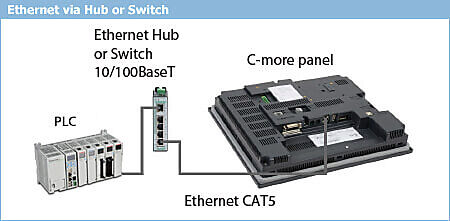

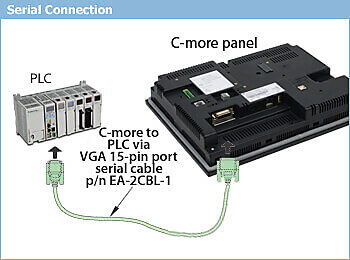

Typical C-more-to-PLC Connection Diagrams
We have the Operator Interface to PLC cables you need (at great prices too!)
Click here to view all of the programming and PLC cables on the store.
| Cable Description | Cable Part Number |
|---|---|
| Direct LOGIC PLC RJ-12 port, DL05 DL06, DL105, DL205, D3-350 & D4-450(RS-232C) |
$31.00
|
| Direct LOGIC (VGA Style) 15-pin port DL06, D2-250 (250-1), D2-260(RS-232C) |
$31.50
|
| Direct LOGIC PLC RJ-11 port, D3-340(RS-232C) |
$31.00
|
| Direct LOGIC DL405 PLC 15-pin D-sub port, DL405 (RS-232C) |
$31.00
|
| Direct LOGIC PLC 25-pin D-sub port, DL405, D3-350, DL305 DCU and all DCM's (RS-232C) |
$32.00
|
| Allen-Bradley MicroLogix 1000, 1200 & 1500 (RS-232C) |
$47.50
|
| Allen-Bradley SLC 5-03/04/05 DF1 port(RS-232C) |
$31.00
|
| Allen-Bradley PLC-5 DF1 port(RS-232C) |
$31.00
|
| Allen-Bradley SLC 500 DH485 port(RS-232C) |
$30.50
|
| GE 90/30 and 90/70 15-pin D-sub port(RS-422A) |
$31.00
|
| MITSUBISHI FX Series 25-pin port(RS-422A) |
$31.00
|
| MITSUBISHI FX Series 8-pin mini-DIN(RS-422A) |
$31.00
|
| OMRON C200, C500 (RS-232C) |
$31.00
|
