C-more EA9 Series: Programming

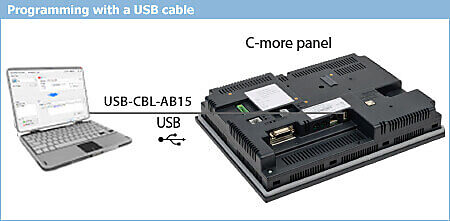

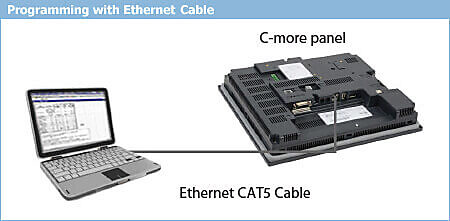

Download your projects to a C-more panel with either USB or Ethernet. Here are connection diagrams for both:

Click here for a list of available PLC cables.

Click here for ethernet cables

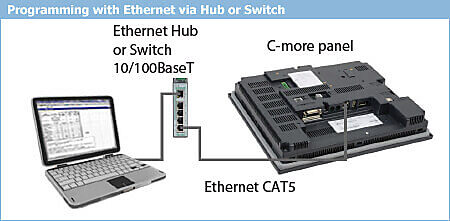

programming with ethernet via hub or switch

We have the programming cables you need (at great prices too!)

Programming Cable Description	Cable Part Number
C-more USB 2.0 programming Cable (3')	USB-CBL-AB3 $12.00
C-more USB 2.0 programming Cable (6')	USB-CBL-AB6 $16.00
C-more USB 2.0 programming Cable (10')	USB-CBL-AB10 $36.50
C-more USB 2.0 programming Cable (15')	USB-CBL-AB15 $42.50

We have ethernet cables available in a variety of colors and lengths. See all available ethernet cables here.

Ethernet Cable Description	Cable Part Number
CABLE ETHERNET STRAIGHT-THRU BLU 3ft (0.9m) CAT5E	C5E-STPBL-S3 $6.75
CABLE ETHERNET STRAIGHT-THRU BLU 7ft (2.1m) CAT5E	C5E-STPBL-S7 $11.00
CABLE ETHERNET STRAIGHT-THRU BLU 10ft (3.0m) CAT5E	C5E-STPBL-S10 $14.50
CABLE ETHERNET STRAIGHT-THRU BLU 14ft (4.3m) CAT5E	C5E-STPBL-S14 $16.50
CABLE ETHERNET STRAIGHT-THRU BLU 25ft (7.5m) CAT5E	C5E-STPBL-S25 $23.00
CABLE ETHERNET STRAIGHT-THRU BLU 50ft (15.2m) CAT5E	C5E-STPBL-S50 $37.50
