BRX PLCs are Do-more^® Driven: Ethernet Remote I/O Controllers

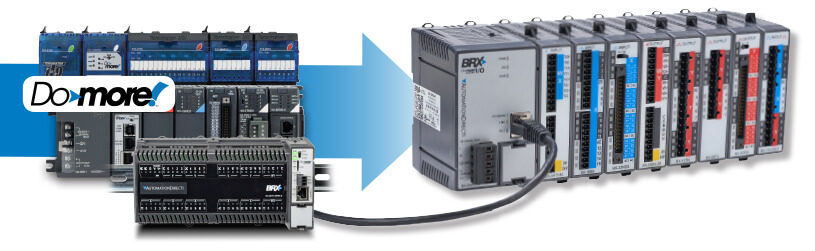

Do-more! I/O Controller (DMIO)

The BRX Do-more! I/O controller provides easy remote expansion for any Do-more! system. Add up to 16 remote I/O racks to your application using the DMIO controller, that's over an additional 4,000 discrete or over 2,000 additional analog I/O points. When using the DMIO controller, all I/O racks will be auto-discovered and seen as native I/O to the system allowing for instant configuration.

Supported protocols:
Do-more! Ethernet Remote I/O - use with any Do-more! controller

BX-DMIO-M [$219.00] BRX Do-more I/O controller, (1) Ethernet 10/100Base-T (RJ45) port(s), Do-more I/O controller protocol, up to 100 Mbps, external 120 VAC required. [spec PDF]

BX-DMIO-M-D [$193.00] BRX Do-more I/O controller, (1) Ethernet 10/100Base-T (RJ45) port(s), Do-more I/O controller protocol, up to 100 Mbps, external 24 VDC required. [specs PDF]

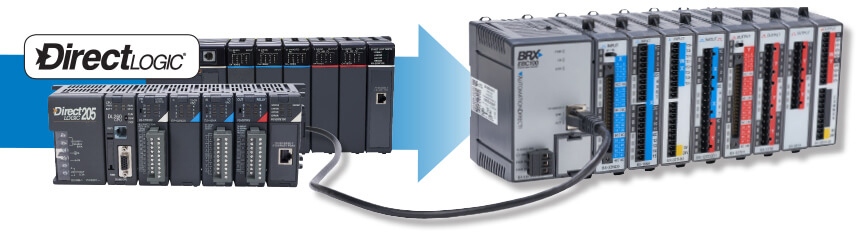

Ethernet Base Controller (EBC100)

The BRX Ethernet Base Controller can be used to expand any system using DirectLOGIC H2-ERM100s/H4-ERM100s, any Do-more! system, and can also be used as a Modbus TCP Server. Up to 16 remote EBC100 racks can be used with DirectLOGIC or Do-more! systems and 247 EBC100 racks can be added when using Modbus TCP. That is over an additional 63,000 discrete I/O points! The remote I/O will be seen as native to the system unless using Modbus TCP, then the Modbus Read/Write instructions are required for receiving/sending I/O data.

Supported protocols:
Do-more! Ethernet Remote I/O - use with any Do-more! controller
Host Ethernet Remote I/O - use with H2-ERM100s/H4-ERM100s
Modbus TCP - use with Modbus TCP Client

BX-EBC100-M [$323.00] BRX Ethernet base controller, (1) Ethernet 10/100Base-T (RJ45) port(s), Do-more Ethernet remote I/O, Modbus TCP/IP, TCP/IP, UDP/IP and IPX, up to 100 Mbps, external 120 VAC required. [spec PDF]

BX-EBC100-M-D [$301.00] BRX Ethernet base controller, (1) Ethernet 10/100Base-T (RJ45) port(s), Do-more Ethernet remote I/O, Modbus TCP/IP, TCP/IP, UDP/IP and IPX, up to 100 Mbps, external 24 VDC required. [specs PDF]

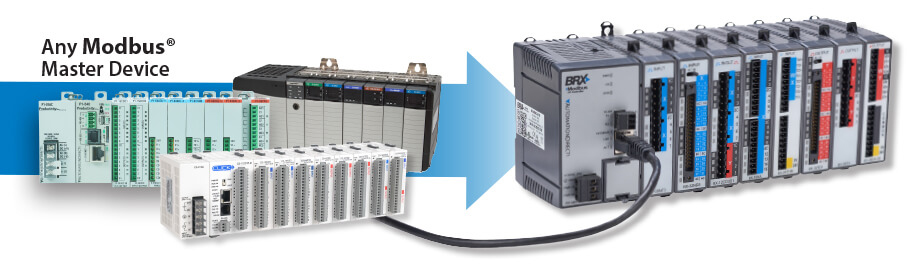

Modbus I/O Slave Controller (MBIO)

The BRX Modbus I/O slave controller allows any system with a Modbus master/client to expand its I/O capacity. Supporting both Modbus RTU and Modbus TCP protocols, this controller provides up to 31 additional Modbus RTU remote I/O racks and 247 additional Modbus TCP remote I/O racks. With the Modbus TCP option, over 63,000 extra discrete I/O points are possible. When using the MBIO slave controller, I/O data is sent to/from the master using Modbus Read/Write commands. The MBIO slave controller is great for remote expansion with other AutomationDirect PLCs or as a low-cost alternative for 3rd party controllers that support Modbus mastering.

Supported protocols:
Modbus RTU - use with Modbus RTU Master
Modbus TCP - use with Modbus TCP Client

BX-MBIO-M [ $306.00 ] BRX Modbus I/O controller, (1) Ethernet 10/100Base-T (RJ45) and (1) RS-485 (3-pin terminal) port(s), Modbus RTU and Modbus TCP/IP, up to 115.2k baud and up to 100 Mbps, external 120 VAC required. [spec PDF]

BX-MBIO-M-D [ $283.00 ] BRX Modbus I/O controller, (1) Ethernet 10/100Base-T (RJ45) and (1) RS-485 (3-pin terminal) port(s), Modbus RTU and Modbus TCP/IP, up to 115.2k baud and up to 100 Mbps, external 24 VDC required. [specs PDF]
