The CLICK PLUS series of controllers offers six CPU options with varying degrees of capability so you can choose the features that best fit your application. Wi-Fi connectivity, Ethernet communication, and data logging are all available options with these low-cost CPUs.
- CLICK PLUS PLC CPU Modules start at $97.00
CLICK PLUS CPU Modules
CLICK PLUS Series Controllers - over 400 stand-alone PLC configurations possible!
C2-01CPU-2
24 VDC required
2 option slots
Ethernet
Serial and microB-USB ports
No on-board I/O
$136.00
C2-02CPU-2
24 VDC required
2 option slots
WiFi LAN/Bluetooth and microB-USB ports
No on-board I/O
$193.00
C2-03CPU-2
24 VDC required
2 option slots
WiFi LAN/Bluetooth, Ethernet, serial and microB-USB ports
microSD card slot
No on-board I/O
$255.00
CLICK PLUS Option Slot Modules
C2-01CPU-2
24 VDC required
2 option slots
Ethernet
Serial and microB-USB ports
No on-board I/O
$136.00
C2-02CPU-2
24 VDC required
2 option slots
WiFi LAN/Bluetooth and microB-USB ports
No on-board I/O
$193.00
C2-03CPU-2
24 VDC required
2 option slots
WiFi LAN/Bluetooth, Ethernet, serial and microB-USB ports
microSD card slot
No on-board I/O
$255.00
The following option slot I/O modules are available for the CLICK PLUS PLC System. One or two option slot I/O modules can be inserted into a CLICK PLUS CPU (depending on model) to customize a stand alone controller. Option slot modules with DC I/O offer high-speed input and output capability up to 100kHz (high-speed I/O functionality supported only in slot 0 of the 2-slot CPU).
C2-DCM
Communication module
Modbus RTU and ASCII
2 ports
(2) RS-232/RS-485 (6-pin terminal) port(s)
For use with all CLICK PLUS PLCs
(2) CT-6TB terminal blocks included.
$58.00
C2-14D1
Discrete Combo Module
Input: 8-point, 24 VDC, sinking/sourcing
Output: 6-point, 5-27 VDC, sinking, 0.1A/point
Removable terminal block included.
$58.00
C2-14D2
Discrete combo module
Input: 8-point, 24 VDC, sinking/sourcing
0.1A/point
Removable terminal block included.
$58.00
C2-14DR
Discrete combo module
Input: 8-point, 24 VDC, sinking/sourcing,
Output: 6-point, 6-240 VAC/6-27 VDC, relay, (6) Form A (SPST) relays, 1A/point. Removable terminal block included.
$70.00
C2-14AR
Discrete combo module, Input: 8-point, 100-120 VAC, Output: 6-point, 6-240 VAC/6-27 VDC, relay, (6) Form A (SPST) relays, 1A/point. Removable terminal block included.
$70.00
C2-08D1-4VC
Discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, sinking.
$90.00
C2-08D2-4VC
Discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, sourcing.
$90.00
C2-08DR-4VC
Discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, relay, (4) Form A (SPST) relays.
$103.00
C2-08AR-4VC
Discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, Discrete Output: 4-point, relay, (4) Form A (SPST) relays.
$103.00
C2-08D1-6C
Discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, sinking.
$90.00
C2-08D2-6C
Discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, sourcing.
$90.00
C2-08DR-6C
Discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, relay, (4) Form A (SPST) relays.
$103.00
C2-08AR-6C
Discrete/analog combo module, Analog Input: 4-channel, current, Analog Output: 2-channel, current, Discrete Input: 4-point, Discrete Output: 4-point, relay, (4) Form A (SPST) relays.
$103.00
C2-08D1-6V
Discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, sinking.
$90.00
C2-08D2-6V
Discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, sourcing.
$90.00
C2-08DR-6V
Discrete/analog combo module, Analog Input: 4-channel, voltage, Analog Output: 2-channel, voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, relay, (4) Form A (SPST) relays.
$103.00
Choose from 10 Discrete DC Stackable I/O Modules:
The following Discrete DC Stackable I/O modules are available for the CLICK PLC System. Up to 8 Stackable I/O modules can be connected to a CLICK PLUS CPU module to expand the system I/O count and meet the needs of a specific application.
- CLICK PLC DC I/O Modules start at $48.00
- Use a CLICK PLUS CPU with Option Slot Module(s) as a standalone PLC OR add up to 8 I/O Modules for increased capability
- Rackless system saves panel space
- Learn more about How To Choose I/O type.
CLICK Discrete DC
Stackable I/O Option Modules
Discrete DC Input Modules
Discrete DC Output Modules
Discrete Combo Modules
Choose from 9 AC and Relay Stackable Modules:
The following AC and Relay Stackable I/O modules are available for the CLICK PLC System. Up to 8 Stackable I/O modules can be connected to a CLICK PLUS CPU module to expand the system I/O count and meet the needs of a specific application.
- CLICK PLC AC and Relay Stackable I/O Modules start at $57.00
- Use a CLICK PLUS CPU with Option Slot Module(s) as a standalone PLC OR add up to 8 I/O Modules for increased capability
- Rackless system saves panel space
- Learn more about How To Choose I/O type.
CLICK AC & Relay
Stackable I/O Modules
Discrete AC Input Modules
Discrete AC & Relay Output Modules
Discrete Combo Module (with Relay Outputs)

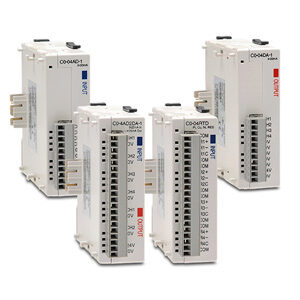

Choose from 8 Analog Stackable I/O Modules:
The following Analog Stackable I/O modules are available for the CLICK PLC System. Up to 8 Stackable I/O modules can be connected to a CLICK PLUS CPU module to expand the system I/O count and meet the needs of a specific application.
- CLICK PLC Analog I/O Modules start at $128.00
- Use a CLICK PLUS CPU with Option Slot Module(s) as a standalone PLC OR add up to 8 Stackable I/O Modules for increased capability
- Rackless system saves panel space
- Learn more about How To Choose I/O type.
CLICK Analog Stackable I/O Modules
Analog Input Modules
Analog Output Modules
Analog Combo Modules
C0-4AD2DA-2
4 Voltage Inputs &
2 Voltage Outputs
0-10VDC
13-bit res.(Inputs)
12-bit res.(Outputs)
$217.00
Specialty modules expand CLICK PLC capabilities.
- CLICK Simulator module priced at $51.00
- Use a CLICK PLUS CPU and Option Slot Module(s) as a standalone PLC OR add up to 8 Stackable I/O Modules for increased capability
- Rackless system saves panel space
- Learn more about How To Choose I/O type.
Specialty Modules
C0-08SIM
Input Simulator
8 toggle switches
simulate input devices
8 status LED indicators
LED power indicator
$51.00
CLICK Power Supplies
Choose a CLICK power supply, or provide your own 24VDC power:
C0-00AC
Auxiliary Power Supply (0.5A)
100-240 VAC Input
24VDC 0.5A Output
Powers any CLICK CPU and some additional modules (power budgeting will be required)
$51.00
C0-01AC
Auxiliary Power Supply (1.3A)
100-240 VAC Input
24VDC 1.3A Output
Powers any CLICK CPU and up to 8 option modules(power budgeting is not required)
$63.00
User Supplied Power Supply
Use your own 24 volt power for CLICK
Check out our RHINO brand of industrial power supplies for any application.
CLICK/CLICK PLUS Programming Cable
For use with PC. Choose cable based on PC port availability, and CLICK CPU model
C5E-STPBL-S7
Representative cable shown: blue, 7' length. Many other colors and lengths available here.
Standard Ethernet Cable (CLICK Ethernet CPU models only)
$11.00
GO WIRELESS
Establishing PC to PLC communications
USB to Serial (older CLICK models)
If a USB port is available on the PC, then use an AutomationDirect USB to RS232 PC to Panel Programming Cable Assembly shown above, to connect between the USB port on the PC and the RJ12 connector on the CPU's PORT1.
USB Cable
Serial, RS-232 Cable
If a 9-pin RS-232 serial communications port is available on the PC, then use an AutomationDirect PC Serial Programming Cable, D2-DSCBL, to connect between the 9-pin port on the PC and the RJ12 connector on the CPU.
Serial, RS-232 Cable
Ethernet - Direct Connection
If you have a CLICK Ethernet CPU, simply connect a standard Ethernet cable to the Ethernet port on your PC.
Ethernet - Direct Connection
Ethernet - With a Switch or Hub
Or if you have a CLICK Ethernet CPU, and wish to connect to it within a local area network, simply connect Ethernet cables into your switch or hub as shown. Many other Ethernet topologies are also possible.
Ethernet - With a Switch or Hub
CLICK PLUS CPUs Micro-USB Programming Port
ALL CLICK PLUS CPUs offer a micro-USB programming port. Simple connect a standard USB A to micro-USB cable from your PC's USB port to the CLICK PLUS CPU for a super easy programming/monitoring connection.
CLICK PLUS CPUs Micro-USB Programming Port
Wi-Fi capable CLICK PLUS CPUs
Wi-Fi capable CLICK PLUS CPUs allow you to bypass programming cables altogether. Simply attach your preferred antenna (sold separately), connect via Bluetooth using the free mobile app, provision the CPU for your network, and once the wireless connection is established it's ready to use.
Wi-Fi capable CLICK PLUS CPUs
ZIPLink Five-Second PLC Wiring
Cut your PLC wiring time down to minutes instead of hours
The ZIPLink wiring system eliminates the normally tedious process of wiring PLC I/O to terminal blocks. Simply plug one end of a ZIPLink pre-wired terminal block cable into your I/O module and the other end into a ZIPLink connector module. It's that easy. ZIPLinks use half the space, at a fraction of the total cost of terminal blocks.
