Productivity1000® Stackable Micro PLC - CPUs

The PLC CPU is the brain of the control system and contains a microprocessor, memory storage, and other integrated circuits used to execute the control program, store logic data, and communicate to external devices. PLC CPUs follow a repeated sequence of operations that perform those functions and other internal processes. Below is an example of a typical PLC scan.

Click for more details

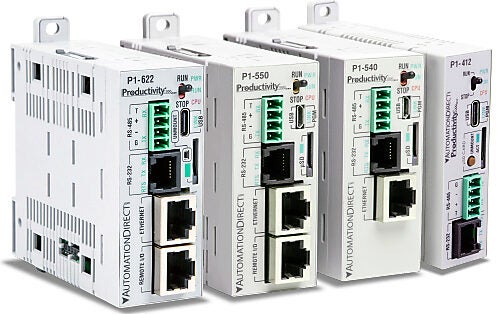

Two high-performance Productivity1000 CPUs are available, both with identical features except the P1-550 CPU includes a remote I/O port that the P1-540 CPU does not.

• Plug-and-play USB programming (uses standard A to micro B cable)
• Tag database and program documentation storage in CPU (program pre-loaded on PC not necessary)
• Supports up to five built-in communications ports simultaneously
• High-speed Ethernet port for HMI and peer-to-peer or business system networking (no Ethernet communications module needed)
• Support for Modbus, EtherNet/IP, and MQTT connections
• Two serial ports for peripheral device interface or controller networking
• Micro SD data logging right from the CPU
• Remote I/O port (P1-550 only) for up to (16) GS series drive connections, (1) PS-AMC motion controller, or hundreds of additional remote I/O points using the P1-RX remote expansion module and/or the Protos X field I/O system
