Productivity3000 Modular PLC - CPUs

The PLC CPU is the brain of the control system and contains a microprocessor, memory storage, and other integrated circuits that are used to execute the control program, store logic data, and communicate to external devices. PLC CPUs follow a repeated sequence of operations that perform those functions and other internal processes. Below is an example of a typical PLC scan.

Click for more details

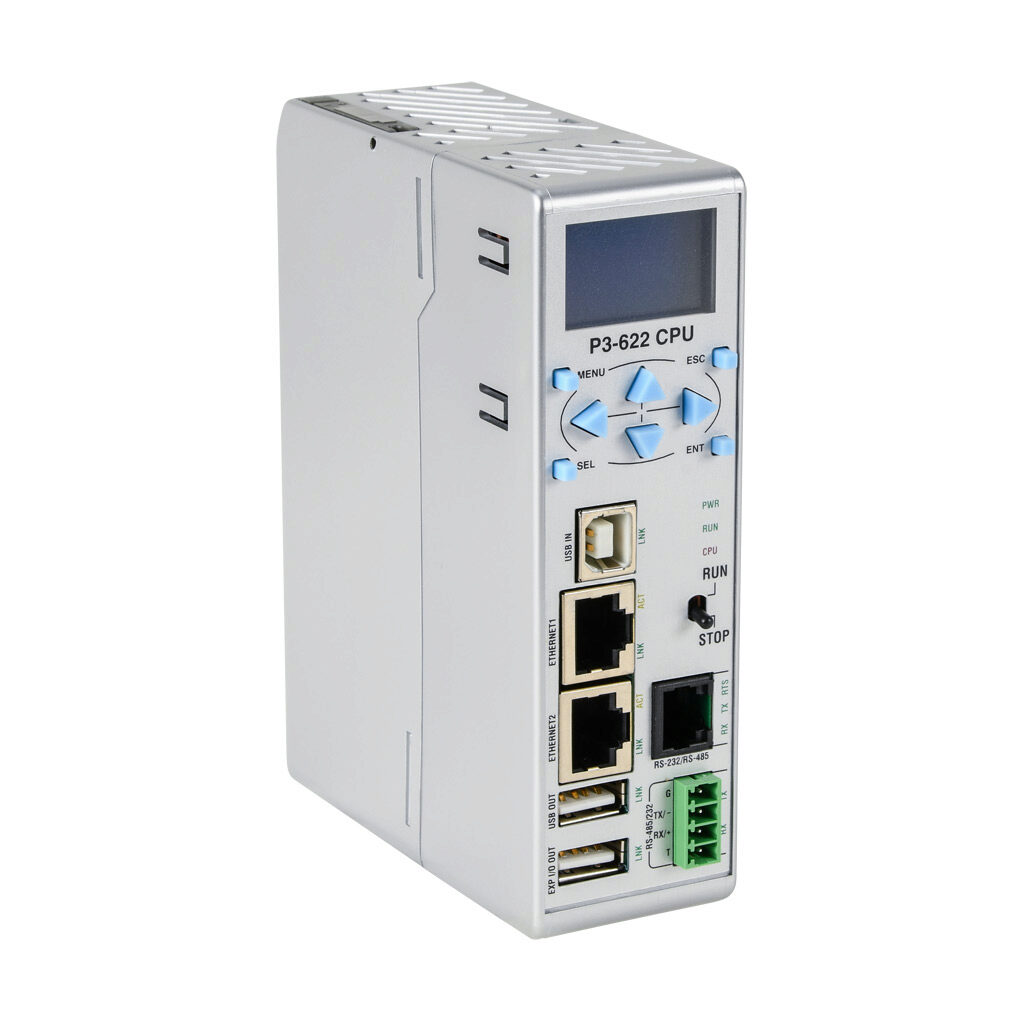

The Productivity3000 CPU provides the needed memory, I/O, and processing power required by advanced automated systems and features:

• 50MBytes of user memory
• 4 x 10-character LCD display for system alarms, status information, and user-defined messages
• 6 communications ports including Ethernet, RS-232, and RS-485
• EtherNet/IP scanner/adapter as a standard protocol
• MQTT protocol support for easy connections to cloud computing platforms
• Over 59,000 I/O points possible when using local and remote I/O
• Remote I/O port for P3-RX remote I/O, Protos X field I/O, GS series VFD, and PS-AMC motion controller connections
• USB data logging
• Tag database and program documentation storage in CPU (program pre-loaded on PC not necessary)
