SureServo2 AC Servo Systems Overview
SureServo2 is the latest servo offering from AutomationDirect. It offers excellent closed-loop performance at an average of 26% lower cost than our previous servo product. These servo systems are available in larger sizes (up to 15kW), and accept more power input options (110/220VAC, single-phase input up to 2kW) than the original SureServo offering.
SureServo2 Family Overview Video

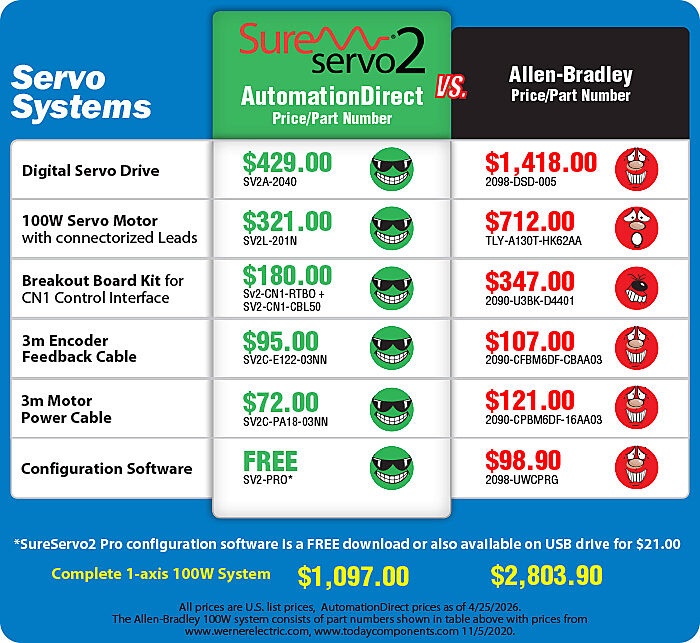

Complete servo systems start at $810
- 100W-2kW = single-phase 110VAC or single/three-phase 220VAC
- 3kW-15kW = three-phase 220VAC
- Fully digital with up to 3.1 kHz velocity loop response
- Easy setup and diagnostics with built-in keypad/display or the SureServo2 Pro PC-based software
- Field upgradeable firmware ensures the drive can always be upgraded to the latest operating system
- Command options include:
- ± 10V torque or velocity command
- Pulse train or master encoder position command (accepts line driver or open collector) with electronic gearing
- Powerful built-in motion controller for position control using 99 preset positions
- Position setpoint with serial Modbus (native), Modbus TCP (option card), or Ethernet/IP (option card)
- Internal sequencing for position/speed commands, registration (capture/ compare), electronic camming, flying shear, rotary shear, homing (10 different options), conditional logic, and arithmetic statements.
- Ethernet/IP supports Implicit and/or Explicit messaging (and the software can generate a custom EDS file to transfer the exact data required between the PLC and servo drive).
- The 3.1 kHz bandwidth allows auto-tuning for virtually all applications
- Auto-tuning estimates the load inertia and fine-tunes the system with all loads attached
- Optically isolated digital I/O
- 10 Inputs
- 6 Outputs
- 2 Analog outputs for monitor signals
- Line driver encoder output (with scalable resolution)
- Secondary/Auxiliary encoder feedback (for true closed loop control)
- Registration ability
- Analog positioning
- Safe Torque Off (STO) included - so no need for large, bulky contactors to disconnect power from the drive in E-stop situations
- Absolute Encoder operation (with optional encoder battery backup)
- Electronic camming (define in software or import from spreadsheet)
- Advanced Scope feature that can monitor a variety of command and status signals, including output speed, torque, power, etc.
Why use a servo?
The SureServo2 servo systems provide the highest possible level of performance for precise control of position, velocity, and torque. Compared to lower cost stepping systems, or lower featured servo systems, the SureServo2 products provide:
- More torque at higher speeds (up to 6,000 rpm)
- Broader range of & higher power (up to 15 kW)
- Higher response with closed-loop control
(high hit rate without stalling or lost position) - 14 standard servo systems from 100W to 15kW
- Support for 110VAC and 220VAC single-phase input power on systems 2kW
and below (ALL systems accept 220VAC 3-phase) - Control via analog speed or torque signal, high-speed pulse train (up to 4MHz),
internal indexing, or with serial or Ethernet communications - Professionally manufactured cables for motor power, encoder feedback, and brake (optional)
- Compatible with most AutomationDirect PLCs; or any other host controller or HMI
- Servo drives feature on-board motion controller with registration, electronic camming, and event-based logic control
- Option modules for networking capability
- Absolute Encoder functionality
- External (secondary) encoder support for Full Closed-Loop Control
- Servo drives feature Safe Torque Off (STO)
- Free set-up software
Quick Start: Get started fast with our free "quick start" videos
SureServo2 Quickstart Video - Hardware
SureServo2 Quickstart Video - Basics & Jog
Configure a SureServo2 System
Use our handy configuration tool to configure a complete SureServo2 system with all required cables and accessories. Then send the parts directly to your shopping cart.
- Filter motors based on your criteria
- View/compare Torque-Speed Curves
- Pick matching accessories
- Get ALL the required parts on ONE order
