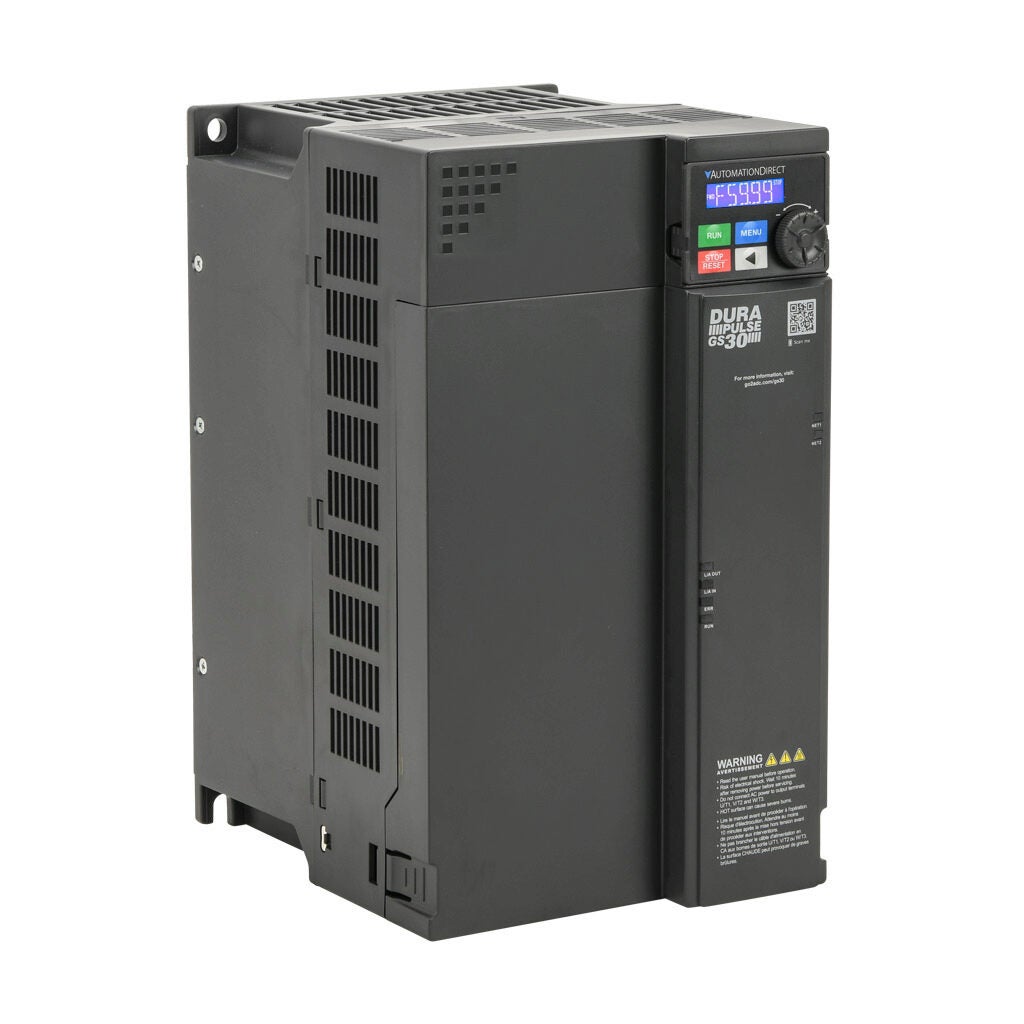

DURApulse GS30 AC Flux Vector Drives
The DURApulse GS30 series flux vector AC drives provide unparalleled advanced features at an industry-best price. These drives include the features available on the GS20, plus many other features, such as closed-loop flux vector control, EtherCAT® Communication, and a dedicated tension control parameter set.
Starting at $239.00
GS30 Features
You will be hard-pressed to find a drive for the same price with all of the features the GS30 provides. In addition to what has already been discussed, the GS30 also supports:
- V/Hz Control, Sensorless Vector Control, Field Oriented Control, Field Oriented Control Plus Encoder (Flux Vector)
- Torque Control Mode and Tension Control Mode
- Maximum frequency 599Hz
- Multiple motor support, supports up to 4 induction motor switching control from a single VFD
- Built-in braking chopper up to 40hp
- DEB, deceleration energy backup, controls motor deceleration during power loss
- 100kA short circuit current rating up to 30hp
- STO Safe Torque Off
- 100% conformal coating (IEC 60721-3-3 class 3C2) on PCBs provides moisture, corrosion & dustproof in critical environments
- Built-in PLC (up to 5,000 steps)
- USB programming
- Built-in RS485 communications (Modbus RTU)
- Optional Ethernet communications Modbus TCP, EtherNet/IP, and EtherCAT
- Optional encoder option card for support of Flux Vector Control mode
- Expansion I/O option cards
- Backup power supply option card
- Generous built-in I/O
- Analog inputs +/- 10VDC, 0-10VDC, 0-20mA/4-20mA
- Digital I/O: 7 inputs, 3 outputs
- 2 option card mounting positions
- High-Speed Pulse Input and Output up to 33KHz
- Mounting, NEMA1 conduit box; DIN rail adapter (up to Frame C); EMC shield plate; top-wire mounting plate (all optional)
- Compact size
- Two-year warranty
- UL, CE listed
Advanced Keypad
Advanced Removable Keypad with RJ45 connection can be remotely mounted. 5-digit, 16 segment LED display with quick setting digital dial. Keypad displays parameter descriptions and the digital dial is used to scroll through parameters.
GS4 Keypad Compatibility
Using the GS4 keypad connected to the GS30 allows the user to monitor several parameters values at once, transfer configuration to/from the keypad to/from the GS30 drive and select parameters by name without referencing the user manual.
GS30 Control Modes
The GS30 supports five different control modes offering various levels of torque output control at different speed ranges. Torque control modes allow the drive to control the level of torque as opposed to speed; this includes a tension control mode and is a feature usually only found on higher cost drives.
Option Cards
Option cards are available for the GS30 to add features like Ethernet communications over EtherNet/IP, Modbus TCP, and EtherCAT, adding an encoder or add a backup to the built-in 24VDC power supply. The GS30 supports up to two option cards with two mounting positions.
Position 1 Option Card Mounting
Position 1 mounting is mandatory for encoder cards and I/O expansion cards and optional for communications cards or backup power supply cards.
Position 2 Option Card Mounting
Position 2 mounting can be used for communication cards (required position for EtherCAT card) and backup power supply cards
Interactive Mounting Instructions
GS30 Programming
The GS30 VFDs support parameter configuration, setup and troubleshooting via the updated GSoft2 software now featuring Ethernet connectivity, parameter wizards and an improved scope feature. In addition to this, the GS30 has a built-in PLC that is programmed with GSLOGIC software
