Do-more^® PLC: GS Drives on Ethernet I/O Network

Do-more with AC Drives & Motors

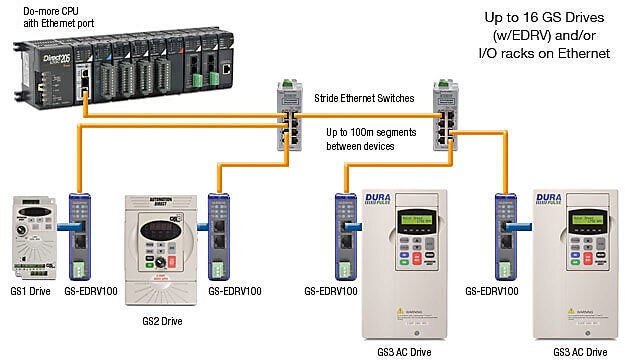

Add up to 16 GS Drives (with EDRV modules) and AC motors to your Do-more system (H2-DM1E CPU). Connected GS Drives are auto-discovered and Do-more automatically creates a memory 'structure' for each drive.

A 'Structure' for GS Drives

• Automatically created whenever you attach a GS drive to the Ethernet I/O network via a GS-EDRV100 module
• Contains the most popular drive parameters
• Parameters in the structure sync automatically with thedrive. No need to read or write these values - just use these tags in your ladder, like native I/O tags
• 15 user-defined registers allow customization of the structure
• If you need access to other drive parameters use the GS Register Instructions

Connect up to 16 GS Drives using...

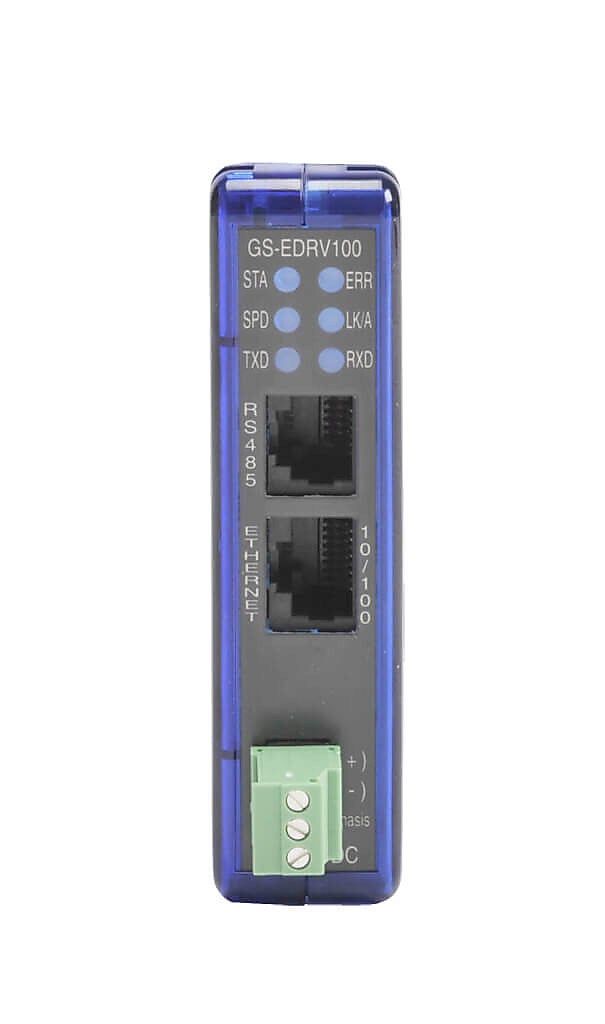

GS-EDRV100 [$261.00]

• 10/100 Mbps Ethernet communications module for GS series AC drives, converts the Ethernet signal from the Productivity3000 Remote I/O and other qualified networks to the drives' serial Modbus connection
• Encapsulated compact form factor
• 35mm DIN rail mountable.
• Serial cable included (2 ft)

[specs PDF]

... or Expansion I/O Racks

Learn more about connecting I/O Racks here

Ethernet I/O Features

• Native Addressing (X/Y, WX/WY tags)


• Auto-Discovery of all attached I/O racks, modules and AC drives


• Independently Adjustable poll rates for each I/O rack or GS drive (w/EDRV) - (0 ms = As Fast As Possible)


• Configure 'critical' I/O so that the CPU will "drop out of run mode" if that I/O rack or GS drive disconnects for some reason.
  Or allow the CPU to continue running using the last known values or cleared values.
