ProductivityCODESYS PLC - Bases

With a PLC system, there are different options for connecting I/O modules to the CPU. Some systems have a fixed style where the CPU comes with a fixed set of I/O points. There are stackable styles where the CPU and I/O modules are separate but come with connectors built in that are used to attach the components together. Another option with PLC hardware is the modular base configuration. With this style of PLC, a separate base unit that holds the modular components is needed. Each module will seat into a slot on the base unit that is used to connect the module to the backplane already installed in the base. These bases may be available with different numbers of slots and some with power supplies built in. Typically, the first two leftmost slots are dedicated for the power supply and CPU.

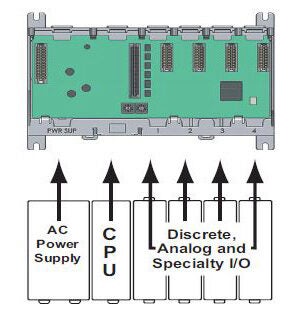

The ProductivityCODESYS PLC system utilizes a modular base that houses a power supply, CPU , I/O modules and includes a data bus that connects the installed I/O modules to the CPU. With this modular base configuration, I/O is easy to install and modify if needed. Simply slide the I/O module in or out of the base, and once installed, use the locking tabs to secure. Many modules can be hot swapped if required, meaning the module can be swapped with the PLC powered and with no interruption to the control process.

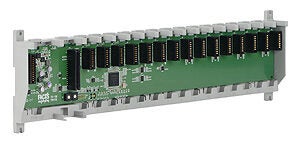

• Bases sizes to accommodate 4, 7, 11, or 15 I/O modules
• DIN rail or flush mounting
• Holds power supply, CPU, and I/O modules
• P2-01AC, P2-01DCAC, or P2-01DC power supply required
• Any I/O module may be installed in any I/O slot without power supply budget or module type restrictions
