Temperature Transmitters
Category Selection
Temperature measurement signals are small and can be in the millivolt range, making them highly susceptible to attenuation and electrical interference when traveling through long wire runs. By converting the millivolt signal sent from a measurement probe into a less susceptible signal, temperature transmitters reduce the effects of electrical noise and prevent single degradation for accurate readings over long transmission distances.
Temperature transmitters are available for a variety of thermocouple and RTD types and provide several installation options.
- Head-mounted models can be securely mounted in a variety of temperature sensor heads.
- DIN rail-mounted versions easily install on standard 35mm DIN rail.
- Quick-disconnect temperature transmitters provide easy installation by mounting inline between the sensor cable and the connection end of temperature probes with M12 connections.
- Programmable transmitters in both head mount and DIN rail-mounted versions use the free XT-SOFT software to configure their output for 4-20 or 20-4 mA , plus many other user-selected parameters including selectable units, scaling, and signal filtering.
- Universal analog-to-frequency converters provide a convenient option when there are no analog input points available on the controlling/monitoring device.
- High-density signal conditioners feature a narrow 6mm width housing to optimize panel space.
For part listings and specifications, go to Shop Now
Fixed Range Head-Mount Transmitters
Convenient head-mounted temperature transmitters can be installed in any ProSense connection head or any DIN Form B sensor head.
- Fixed range models for thermocouple Type J, K, or T, or 3-wire PT100 RTDs
- Select from a variety of pre-configured measuring ranges
- Linearized 2-wire, 4-20 mA current loop output
- Internal cold junction compensation for thermocouple input models
- 8-35, 12-35, or 10-36 VDC operating voltage (depending on model)
- Reverse polarity protected
- Wire break or short circuit detection (NAMUR NE 43 fault response)
- 2 kVAC isolation between input and output
Priced at
$86.00
(XTH2-0100F-PT1)
Fixed Range DIN Rail-Mount Transmitters
DIN rail-mounted temperature transmitters easily mount inside control panels on 35mm DIN-rail and are available for a variety of thermocouple and RTD types.
- Fixed range models for thermocouple Type J, K, or T, or 3-wire PT100 RTDs
- Select from a variety of pre-configured measuring ranges
- Linearized 2-wire, 4-20 mA current loop output
- Internal cold junction compensation for thermocouple units
- 12-35 VDC or 22-26 VDC operating voltage
- Reverse polarity protected
- Wire break or short circuit detection (NAMUR NE 43 fault response)
- 2 kVAC isolation between input and output
- Hazardous location ratings on select units
Starting at
$109.00
(XTD-0100F-J)

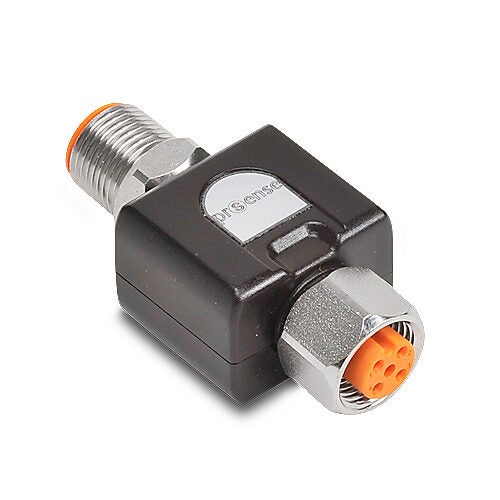

Quick Disconnect RTD Transmitters
ProSense TTD-20 series temperature transmitters mount directly to the M12 connection port of select RTDs.
- High-accuracy 2-wire or 3-wire RTD transmitters
- M12 quick-disconnect for fast mounting and connection
- 20-32 VDC operating voltage
- -40 to 160 °F or -40 to 300 °F temperature range options
- 4-20 mA analog output
Starting at
$79.00
(TTD-20-N40160F-H)
XTD2/XTH2 Series Programmable Temperature Transmitters
ProSense XTD2/XTH2 series universal programmable temperature transmitters are ideal for a wide range of industrial applications. These versatile and reliable temperature transmitters offer several mounting options and can be used with a variety of sensors and process inputs.
- Head or DIN rail mounting options
- RTD, thermocouple, volts, milliamps, or potentiometer input types
- Selectable units of °F, °C, K, Ohm, or mV
- Screw or push-in terminal options
- 2 kVAC isolation
- Output configurable for 4 to 20mA or 20 to 4mA
- DIN rail mounting clips available for XTH2 head mount units
- ProSense Field Device Configurator software (free download) and XT-USB cable required for configuration
Starting at
$110.00
(XTH2-0-UNV-S)

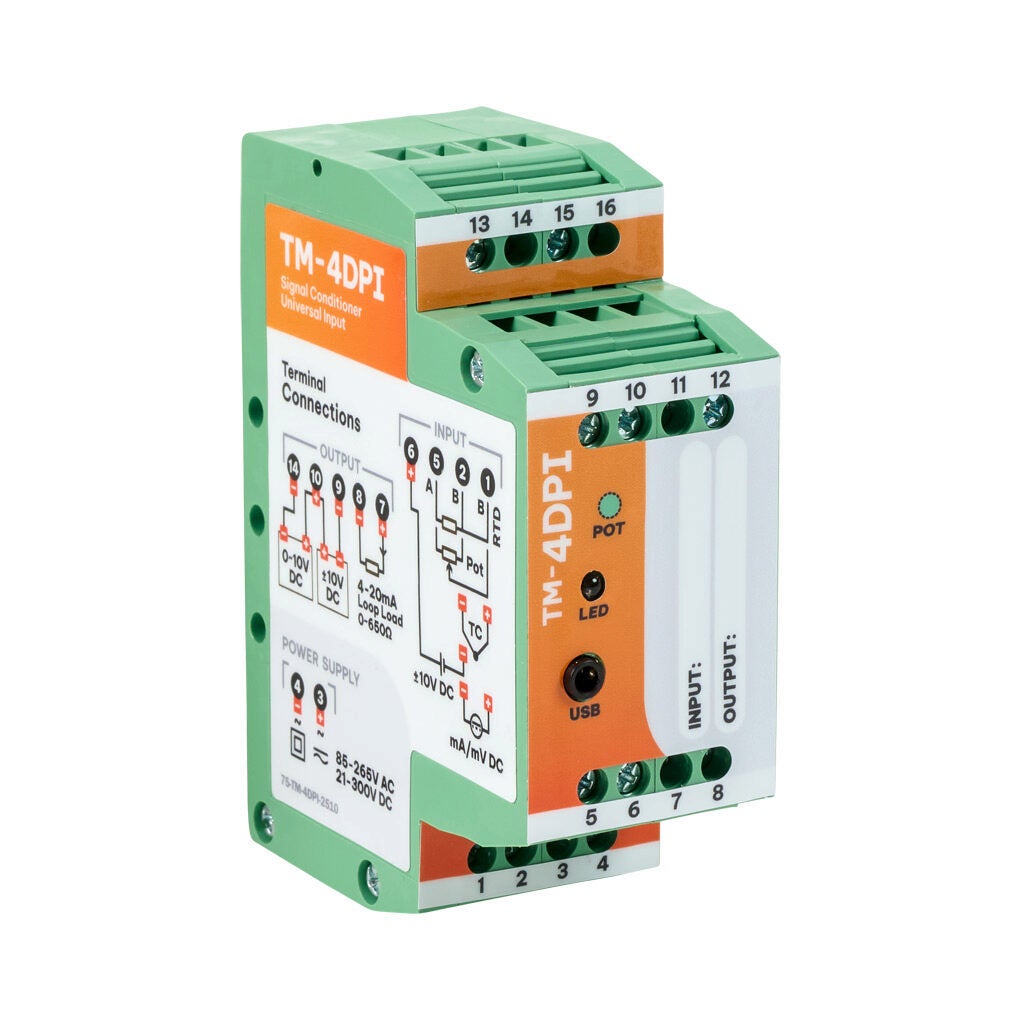

Universal Signal Conditioners
Universal signal conditioners accept mA, VDC, thermocouple, RTD, linear resistance, or potentiometer inputs and provide relay, frequency, and/or analog outputs (depending on the model).
- Selectable current, voltage, RTD, thermocouple, or potentiometer inputs
- Current, voltage, frequency, and/or configurable relay output options
- 21.6-253 VAC / 19.2-300 VDC operating voltage
- LED status indication
- Programming/display module required (sold separately)
- IP20 protection rating
- cULus, FM, and CE marked
Starting at
$224.00
(SCU-3100)

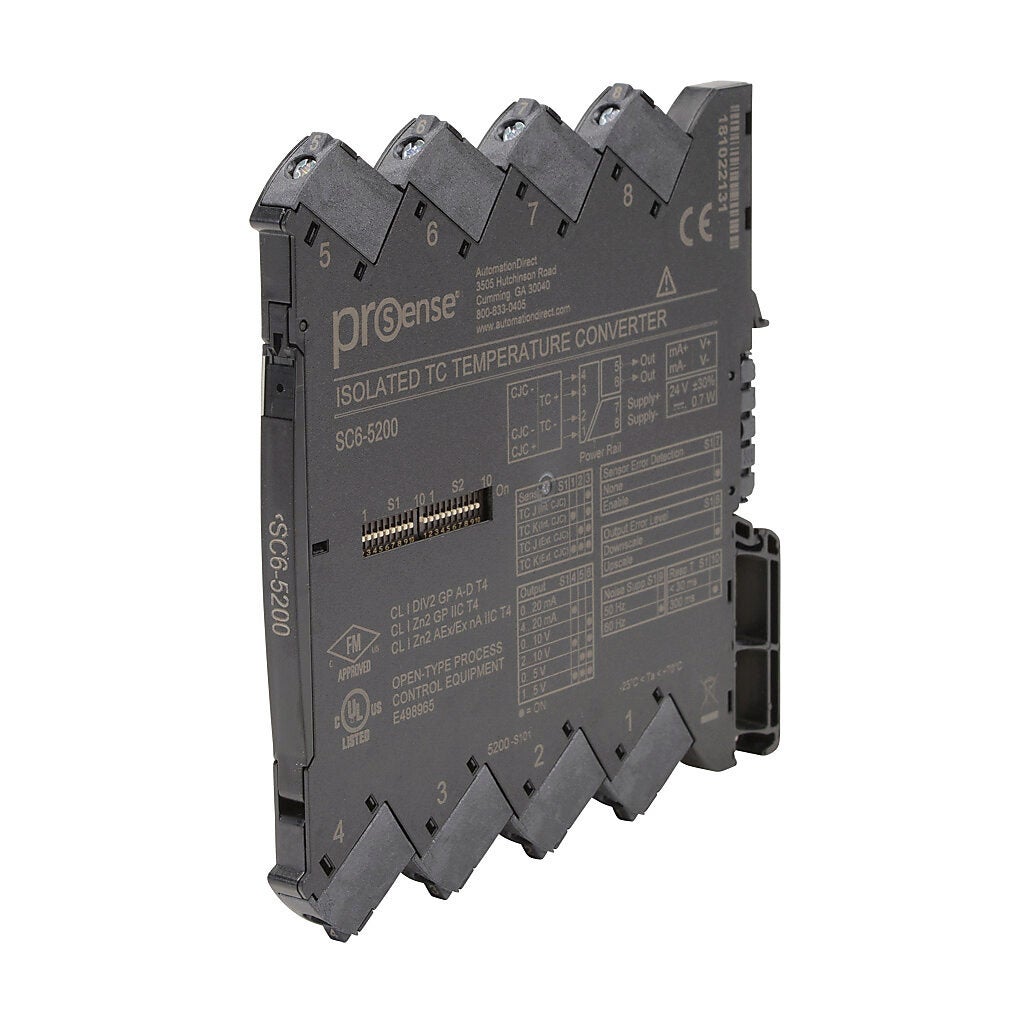

High-Density Signal Conditioners
High-density signal conditioners provide conversion of single-channel Type J and Type K thermocouple signals and/or 2-, 3-, or 4-wire RTD inputs and feature a narrow 6mm width housing to minimize required panel space.
- Select models offer isolation to eliminate ground loop problems
- In-rail power bus for select models
- DIP switch selectable configuration
- LED operation status on some models
- Excellent accuracy and fast response time
- Suitable for high vibration environments
- UL Listed; FM approved for use in Class 1 Division 2 hazardous locations
Starting at
$108.00
(SC6-6102)
