IO-Link master modules control data traffic between IO-Link field devices and are the interface to higher-level controllers/information systems. A wide variety of I/O connections is included, along with EtherNet/IP communication and options for MQTT.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

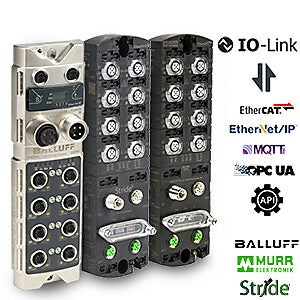

IO-Link Masters

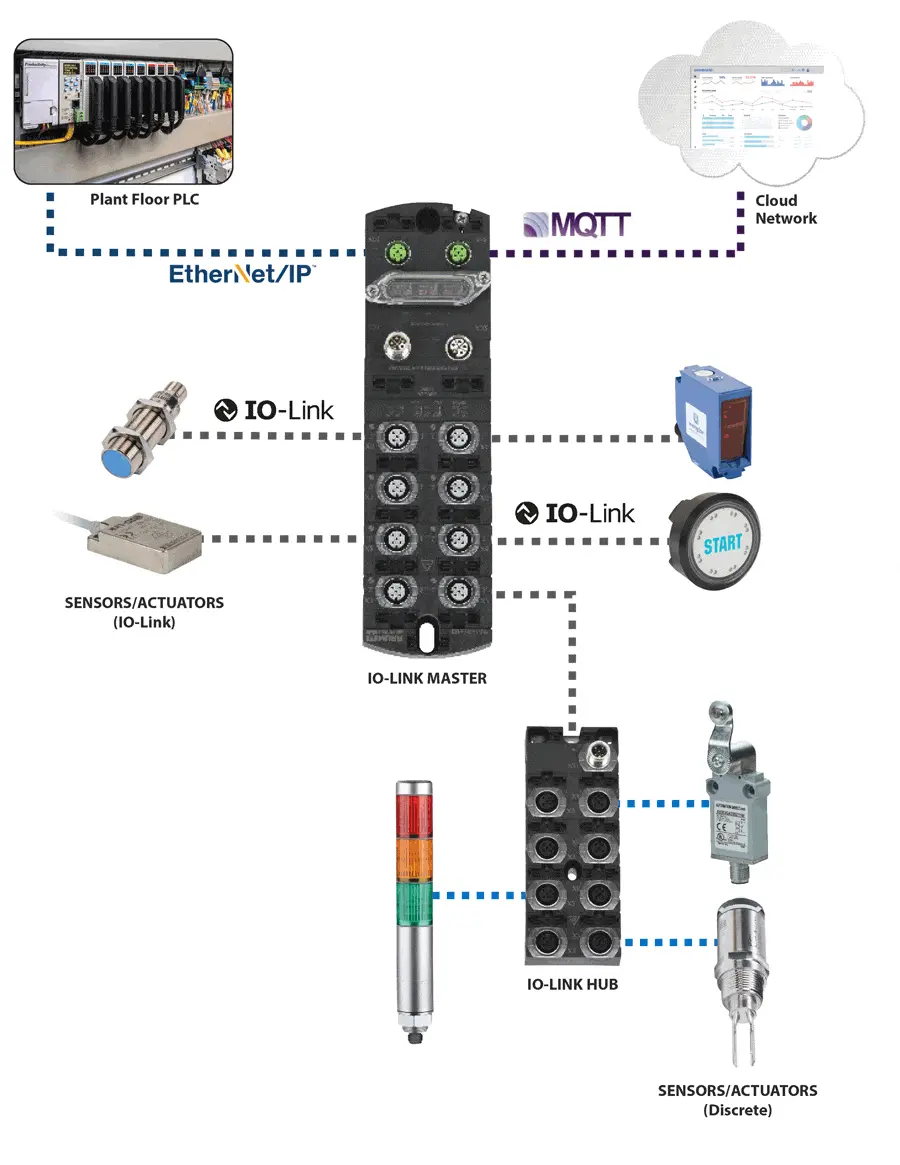

The standard architecture of an IO-Link system consists of an IO-Link master and at least one IO-Link device. The IO-Link master module provides the gateway between intelligent IO-Link-capable devices and EtherNet/IP, OPC UA, or MQTT networks. They can also be used with standard field I/O devices to transmit basic sensing/control data to/from a host controller.
When used with IO-Link enabled devices, the master module will gather a wealth of operational data and convert it to an industry standard fieldbus or IIoT protocol for use by plant-floor controllers, corporate IT databases, cloud computing systems, etc. Operational data supplied by IO-Link systems could include:
- Proximity sensors that transmit peak environmental variables
- Light sensor signals that include signal degradation warnings
- Flow meter data that contains media temperature
- Cycle counts for each solenoid valve in a pneumatic process
The master module also has integrated sensors that continuously provide channel status data (voltage, current, and temperature values) for both the individual ports as well as the entire module. This feature is extremely valuable for both condition monitoring and predictive maintenance.
IO-Link master modules feature:
- 8 IO-Link Class A/B master ports with true DIO functionality - one module for everything: 16 DI, 16 DIO, 16 DO, 8 IOL or any combination
- Simple installation using L-coded M12 power connections specifically designed for daisy-chaining several modules together
- Fully potted, machine-mountable, plastic housings that protect sensitive electronics from industrial and outdoor environments - NO ENCLOSURE REQUIRED
- IP65, IP67 ratings
- Embedded web server for convenient access to module status, configuration, and diagnostics
- Easily integrate IO-Link master modules, hubs, and their connected sensors/actuators with Productivity PLCs using task libraries available in the Productivity Suite programming software
The STRIDE Basic IO-Link master module supports EtherNet/IP (explicit and implicit) messaging.
The Murrelektronik Premium IO-Link master module supports EtherNet/IP (explicit and implicit) messaging, OPC UA and MQTT for data transmission from the sensor direct to the cloud.
IO-Link Master/Hub Overview
Starting at
$290.00
(SIOL-EI8B)
For part listings and specifications, go to Shop Now
