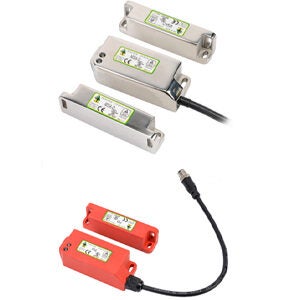

Stand-Alone Non-contact Safety Switches

IDEM stand-alone magnetic coded non-contact safety switches provide an all-in-one solution for monitoring machine guards, doors, or other machinery access panels. Unlike other non-contact safety switches, these do not require a separate safety relay have their own internal monitoring system. These units feature force guided contacts and either a manual or automatic reset; certain models offer selectable manual/auto modes.

• No need for a separate safety relay
• Force guided mechanical contacts
• Contains internal monitoring system
• Wide 14mm sensing distance, high tolerance to misalignment
• Coded magnetic actuation
• LED indication
• Will maintain PLe (ISO13849-1) even when connected in series
• Models with universal plastic housings are suitable for most general applications and are IP67 rated
• 316 stainless steel models available for use in high-hygiene requirement areas with IP69K rating
• Switching capability up to 3A
