Productivity2000^® Micro-Modular PLC - Relay Outputs

Newest Additions!

• High current (7A/pt.) relay output module

For use with higher current control devices, PLC relay output modules function just as an electromechanical control relay would. An external source is supplied to the relay contacts on the module and the PLC CPU will control the opening or closing of these contacts based on the logic coded in the CPU. This way, the PLC controls the device by completing or breaking the control circuit. Since the PLC is only controlling the "coil" and not supplying the output voltage, higher current circuits can be controlled.

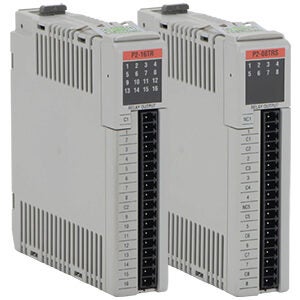

• Relay output modules with 6, 8, or 16 points, in a selection of Form A or Form C contacts
• Support 5-30 VDC, 6-24 VDC, 5-264 VAC, or 6-240 VAC circuits
• Standard relay modules rated up to 4A per point for isolated circuits; up to 8A/common for multiple circuits on one common
• 6-channel high-current model rated for up to 7A per point
