Pressure Transmitters

HydroMode® WPT25 series pressure transmitters are UL Classified NSF/ANSI/CAN 61 and 372 for drinking water use but also support a variety of other compatible liquid and gas applications. They offer a rugged 316L stainless steel construction and provide reliable pressure measurement signals that can be used for process control, data collection, and more.

• Pressure ranges up to 300 psig
• All 316L stainless steel wetted materials
• 4 to 20 mA output
• 8 to 32 VDC operating voltage
• +/-1% accuracy
• 1/4" male NPT process connection
• 4-pin M12 quick disconnect
• IP54 protection rating

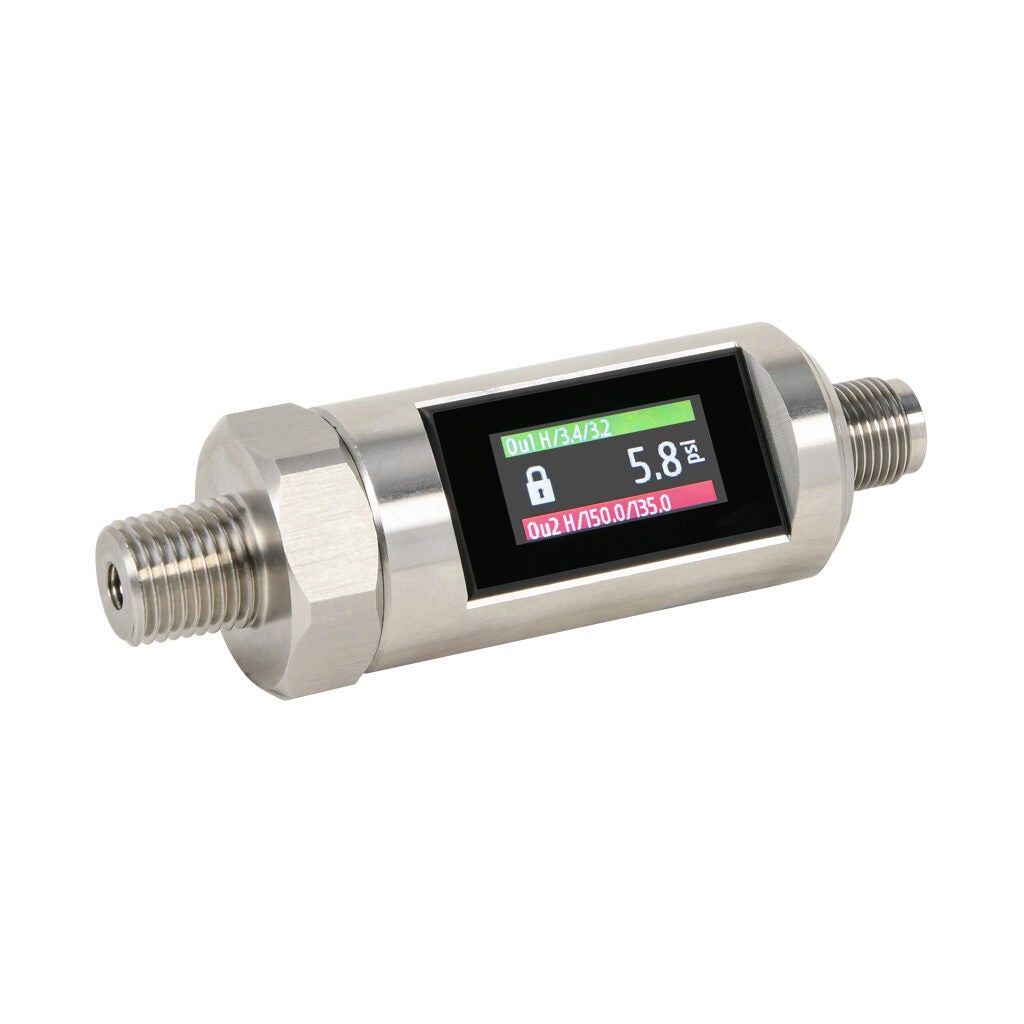

MP Sensor P.Touch series pressure transmitters feature an intuitive touchscreen interface and a rugged stainless steel housing suitable for harsh industrial environments. They offer flexible output options, built-in diagnostics, and robust digital integration, delivering fast and precise measurements while ensuring reliable performance, ease of use, and minimized downtime.

• Pressure ranges from vacuum to 2000 psig
• TFT touch screen display
• 4-20 mA, 0-10 VDC, 1-10 VDC, NPN/PNP switch, and IO-Link output options
• Fast response time of <3ms
• ± 0.5% accuracy
• 1/4in NPT male process connection
• 4-pin M12 quick-disconnect
• IP65/67/68 protection rating

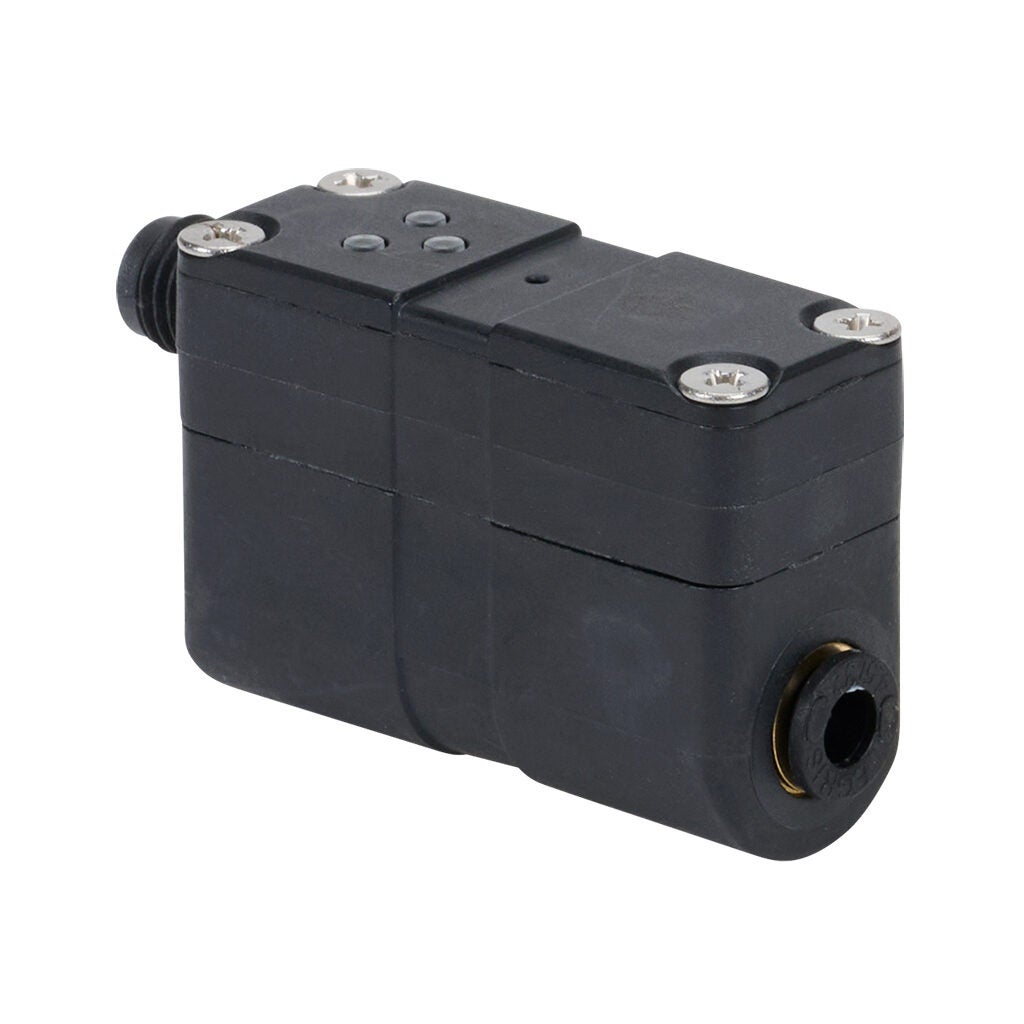

MP Sensor InLine series pressure transmitters are ultra-compact electronic pressure sensors for pneumatic and industrial applications. Ideal for space-constrained installations, they install directly inline with pneumatic tubing via integrated push-in connections. These rugged sensors can be mounted in any orientation and provide reliable pressure monitoring. IO-Link models offer remote parameter configuration and diagnostics.

• Two pressure ranges (-14.5 to 14.5 psig and 0 to 145 psig) accommodate vacuum/low-pressure systems and standard pneumatic applications
• 4-20 mA, NPN/PNP switching, and IO-Link outputs provide compatibility with a wide range of control systems
• ± 0.5% accuracy delivers precise, reliable pressure measurement
• Integrated push-in tubing connections in 5/32, 1/4, 5/16, and 3/8in, plus 6mm sizes, simplify inline installation
• 4-pin M8 quick-disconnect allows easy installation and replacement
• IP68-rated housing protects against dust and water ingress in harsh industrial environments

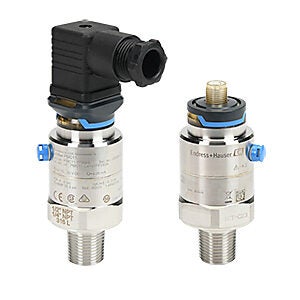

Endress+Hauser Cerabar® PMC11 series pressure transmitters feature an oil-free, capacitive ceramic measuring cell with the Ceraphire® 99.9% ultra-pure ceramic process-isolating diaphragm. Designed for general industrial applications, these transmitters provide excellent resistance to corrosion, abrasion, and overload for reliable pressure measurement.

• Measuring ranges up to 40 bar (600 psig maximum pressure)
• Process temperatures from -13 to +185°F
• ±0.5% of span accuracy
• 4 to 20 mA output
• FKM seals
• 4-pin M12 quick-disconnect or ISO 4400 valve plug electrical connection
• 1/2 in NPT male or 1/4 in NPT female process connections

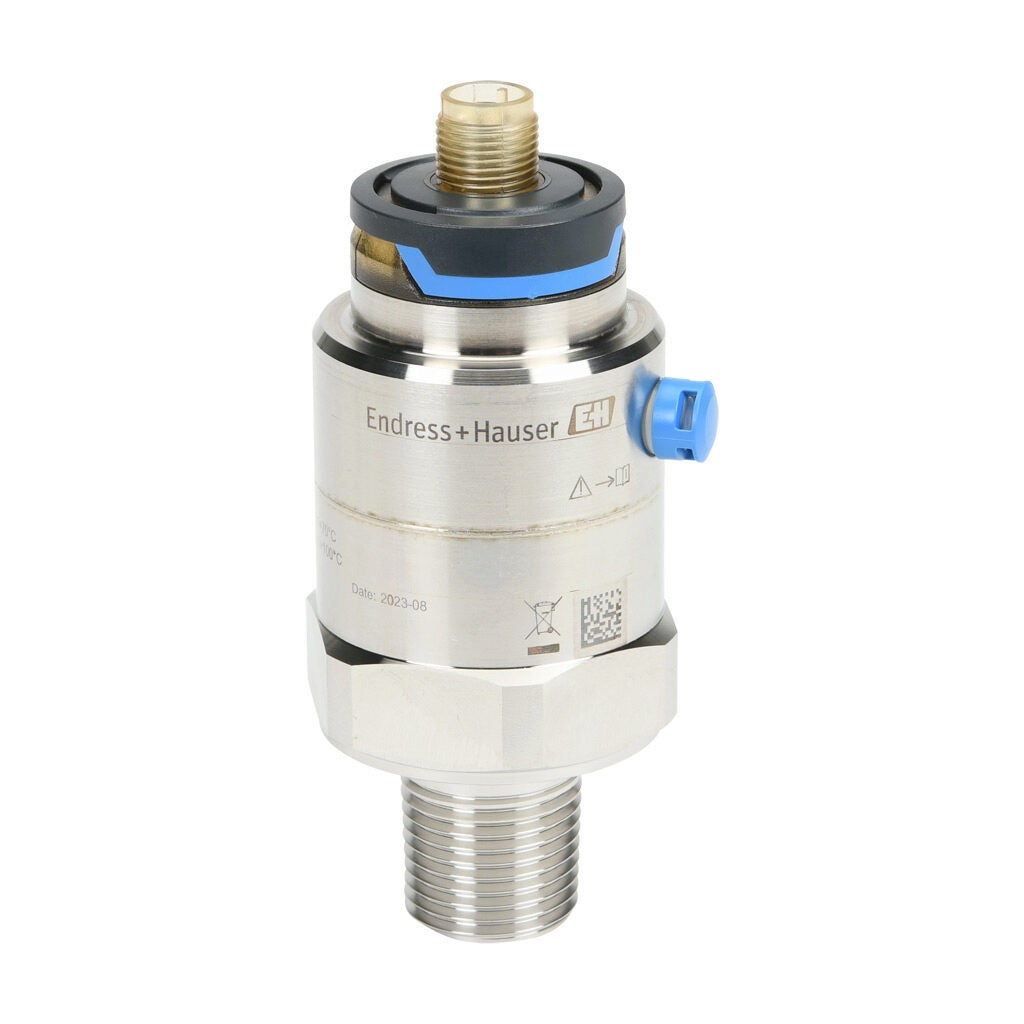

Endress+Hauser Cerabar® PMC21 series pressure transmitters deliver enhanced accuracy and an extended process temperature range for demanding industrial applications. Featuring an oil-free, capacitive ceramic measuring cell with the Ceraphire® 99.9% ultra-pure ceramic process-isolating diaphragm, these transmitters provide excellent resistance to corrosion, abrasion, and overload for reliable pressure measurement performance.

• Measuring ranges up to 40 bar (600 psig maximum pressure)
• Process temperatures from -13 to +212°F
• ±0.3% of span accuracy
• 4 to 20 mA output
• FKM seals
• 4-pin M12 quick-disconnect electrical connection
• 1/2 in NPT male or 1/4 in NPT female process connections

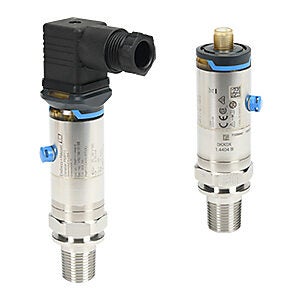

Endress+Hauser Cerabar® PMP11 Series pressure transmitters feature a piezo-resistive sensor with a stainless steel measuring cell for reliable gauge pressure measurement. The fully welded design provides excellent durability and long service life for general industrial applications involving gases and liquids.

• Measuring ranges up to 40 bar (600 psig maximum pressure)
• Process temperatures from -13 to +185°F
• ±0.5% of span accuracy
• 4 to 20 mA output
• 4-pin M12 quick-disconnect or ISO 4400 valve plug electrical connection
• 1/2 in NPT male or 1/4 in NPT female process connections

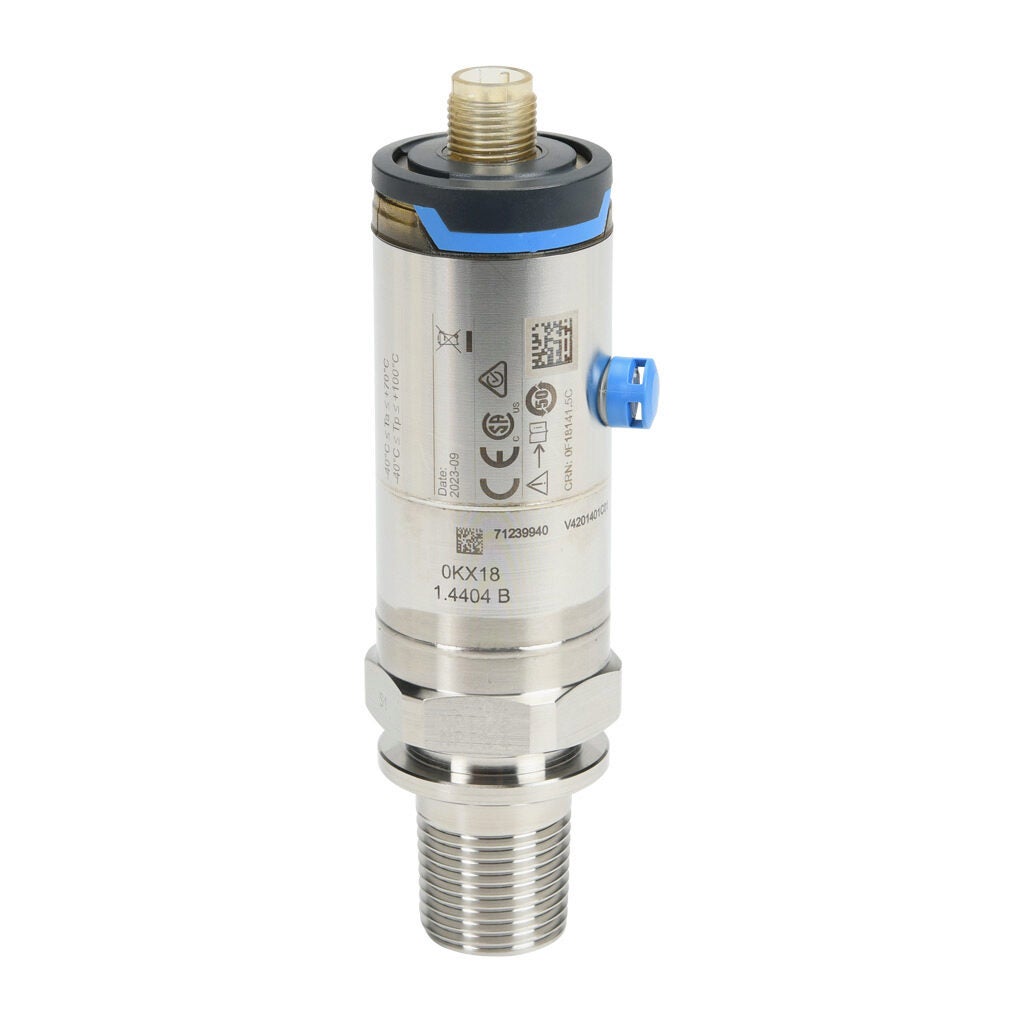

Endress+Hauser Cerabar® PMP21 Series pressure transmitters provide enhanced accuracy, absolute pressure measurement capability, and a wider process temperature range for demanding industrial applications. Featuring a piezo-resistive sensor with a stainless steel measuring cell, these fully welded transmitters deliver reliable pressure measurement of gases and liquids with excellent long-term durability.

• Measuring ranges up to 40 bar (600 psig maximum) gauge or 103.4 bar (1500 psia maximum) absolute
• Process temperatures from -40 to +212°F
• ±0.3% of span accuracy
• 4 to 20 mA output
• 4-pin M12 quick-disconnect electrical connection
• 1/2 in NPT male or 1/4 in NPT female process connections

Endress+Hauser Cerabar® PMP23 series hygienic pressure transmitters feature a compact stainless steel housing, a fully welded sanitary tri-clamp process connection, and are 3-A approved for Food and Beverage applications. Select models offer IO-Link v1.1 capability for easy setup, integration, and on-the-fly configuration changes.

• Pressure ranges up to 600 psig
• Suitable for gas, liquid, and vapor applications
• 4 to 20 mA analog or IO-Link output options
• Suitable for CIP/SIP cleaning
• Fully welded 1-1/2" sanitary tri-clamp process connections
• 316L stainless steel housing and process isolating diaphragm
• IP65/67 or IP66/69 protection rating (depending on model)
