Terminator Field I/O
Category Selection
The most practical distributed I/O system you can buy
Add low-cost field I/O (such as a digital I/O module) to your programmable logic controller (PLC) or PC-based industrial control system.
Terminator I/O
provides you with an industrial I/O system with remote I/O, distributed I/O and digital I/O module capabilities. It combines the I/O points with their field terminations into a modular package to save panel space and money. With Terminator I/O, you can use distributed I/O nodes close to field devices for faster and more efficient wiring and troubleshooting.
-
Network interface modules supporting Ethernet, DeviceNET and MODBUS;
some adapters include an on-board RS232 serial port. - Discrete and analog industrial I/O modules with modular terminal bases
-
Configuration flexibility by plugging together a network interface module with up to 16 I/O modules.
Use local expansion for large I/O drops. No more confining I/O bases. - AC or DC power supplies. For high power systems, combine multiple supplies on a single I/O set.
- Horizontal or vertical DIN rail mounting
Terminator I/O Overview
Terminator I/O - Power Supplies / Terminal Bases / Cables
Two power supply options and two sizes of terminal bases accomodate all I/O modules
- Power supply options: 120/240 VAC and 12/24 VDC
- AC supplies include 24 VDC auxiliary supply for convenient field device wiring
- Half-size bases for up to 8-point modules
- Full-size bases for up to 16-point modules
- Triple-stack terminal blocks are standard and multi-wire devices are easy to connect
- Same bases for all I/O modules - AC, DC, and analog
Terminator I/O
- Network Interface Modules
Network interface modules for your favorite fieldbus
- Ethernet - the "common sense network", 100BaseT
- DeviceNET, MODBUS
- All network modules include an on-board RS232 serial port, ideal for operator interfaces or other serial devices
- Ethernet modules even support connectivity to bar code readers
Terminator I/O
- Discrete Input Modules
Discrete I/O with the features you need
- 8-point or 16-point input and output modules (DC and AC inputs; DC, AC and relay outputs)
- 8-point 5-36 VDC current sinking/ sourcing isolated output module
- All DC input modules are sink/ source jumper configurable
- Diagnostic LEDs for blown fuses and 24 VDC power on applicable modules
- "Hot-swap" capability makes troubleshooting easy
Terminator I/O
- Discrete Output Modules
Discrete I/O with the features you need
- 8-point or 16-point input and output modules (DC and AC inputs; DC, AC and relay outputs)
- 8-point 5-36 VDC current sinking/ sourcing isolated output module
- All DC input modules are sink/ source jumper configurable
- Diagnostic LEDs for blown fuses and 24 VDC power on applicable modules
- "Hot-swap" capability makes troubleshooting easy
Terminator I/O
- Analog Modules
Analog I/O modules at a low price per channel
- 8-channel input modules, or choose a 16-channel output module
- 0-20 mA/ 4-20 mA and unipolar and bipolar voltage models available
- 14-channel thermocouple input module supports J, E, KE, R, S, T, B, N, and C types
- 16-channel RTD input module supports Pt100, jPT100, Cu10, Cu25, and Pt1000
- 16-channel thermistor input module ... New!
- All analog ranges are software configurable - no jumpers required!
- "Hot-swap" analog modules for fast system repair
Terminator I/O
- Specialty Module
Terminator I/O High Speed Counter Module
8 DC sink/ source inputs 9-30 VDC, 4 isolated sink/ source DC outputs, 5-30 VDC, 1 A per point
-
Inputs supported:
2 quadrature encoder counters up to 100 KHz, or 4 single channel counters up to 100 KHz, and 4 high speed discrete inputs for Reset, Inhibit, or Capture -
Outputs supported:
4 independently configurable high speed discrete outputs or 2 channels pulse output control, 20 Hz - 25 KHz per channel, pulse and direction or cw/ ccw pulses.
NOTE: (Use with T1K-16B or T1K-16B-1 terminal base.)
Terminator I/O - Spare Parts and Accessories

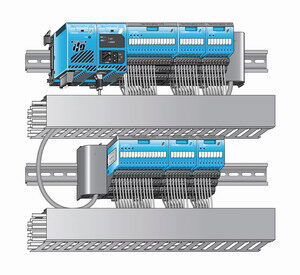

Local expansion up to two additional rows!
- Full backplane expansion through cables
- Connect up to 16 modules across three total rows by plugging expansion cable from the right side of one module to the left side of the next - the system automatically recognizes the I/O!
- Optional cable that includes 24 VDC pins maximizes your power supply capability
