Productivity Series Programmable Logic Controllers In Depth

CPU - value leader!

The Productivity1000 series PLC is the super compact yet highly capable member of our Productivity controller family. Packed with many of the features you love about the Productivity family but housed in a smaller, slimmer design and with a CPU starting at price of $237.00, the Productivity1000 PLC will deliver the time, space, and budget savings your project needs.

Top hardware features:

• 50MB user memory easily handles complex applications
• Up to 5 built-in communication ports for easy connectivity to your PC or various industrial networks: micro USB, Serial RS-485, Serial RS-232, general purpose Ethernet 10/100 Mbps, remote I/O Ethernet 10/100 Mbps
• Support for Modbus RTU/TCP, EtherNet/IP and MQTT communication
• Data logging up to 32GB on a microSD card (sold separately)
• Slim, stackable, super compact design
• Add up to 15 I/O modules for a total of 240 discrete I/O points or 120 analog I/O channels or expand remotely for an additional 512 discrete or 256 analog points (using P1-RX modules)
• Numerous I/O modules available including discrete, analog and high-speed I/O
• Low-cost high-speed counter and pulse width modulation modules for accurate control in pulsed I/O applications

CPU only

$237.00

Looking for Open-source control?

Click here

CPU with 5 built-in comm ports

The Productivity2000 PLC is where value meets power. This controller was designed to provide advanced features at an extremely affordable price and lowest cost of ownership in its class. Considering the memory, performance, options, free software, free support and everything else this controller has to offer, it really does stand above the competition.

Top hardware features:

• 50MB user memory easily handles complex applications
• 5 built-in communication ports including: (1) plug-and-play USB programming port, (1) general purpose Ethernet 10/100Mbps port, (1) remote I/O Ethernet 10/100Mbps port (can be used as an additional general purpose Ethernet port w/ P2-622 CPU) and (2) serial ports
• Support for Modbus RTU/TCP, EtherNet/IP and MQTT(S) communication
• Data logging up to 32GB on a microSD card (sold separately)
• Programmable 4-line OLED message display on CPU for system status and tag data readouts
• Patented OLED displays on select analog modules for real-time, no meter required measurements

Micro-modular rack-based system

• Full lineup of 56 discrete, analog and high-speed I/O modules
• Accurate high-speed control using HSI, HSO and HSC modules
• Pulse width modulation modules for precise control in applications requiring PWM signals
• Up to 480 local I/O points and 4,320 total I/O through remote expansion (using P2-RS and/or P1-RX modules)
• Hot-swappable I/O, no module placement restrictions, no power budget limitations
• ABS certified for marine applications (standard of excellence in marine and offshore classification)

CPU only

$361.00

Expansive I/O with 7 built-in comm ports!

The Productivity3000 PLC is a communications powerhouse with numerous networking options built in. It's also the I/O leader of the group with over 59,000 I/O points possible through local and remote expansion.

Top hardware features:

• 50MB user memory easily handles complex applications
• Industry-leading 7 communications ports built in including: USB programming port, local expansion, and Ethernet remote I/O ports (CPUs are available with less ports at a reduced cost)
• Support for Modbus RTU/TCP, EtherNet/IP and MQTT communication
• Data logging to external USB drive
• Programmable 4-line LCD message display on CPU (P3-550(E)) for system status and tag data readouts
• Patented LCD displays on all analog modules for real-time, no meter required measurements

Modular rack-based system

• Full lineup of 37 discrete, analog and specialty PLC I/O modules including high-speed
• High-density I/O modules - up to 64 discrete I/O points per module
• Support for local expansion and remote I/O bases, up to 59,840 I/O points
• Hot-swappable I/O, no module placement restrictions, no power budget limitations
• ABS certified for marine applications (standard of excellence in marine and offshore classification)

CPU starting at

$735.00

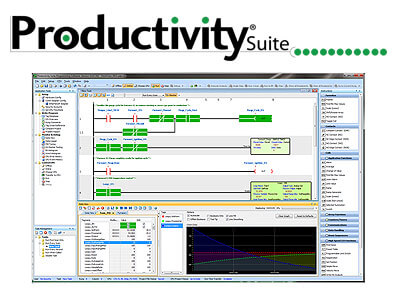

FREE full featured PLC programming software with no strings attached

No more "pay as you go" software with an annual subscription year after year...this is FREE software - developed and supported in the USA.

Top software features:

• Project simulator for easy logic verification/testing
• EDS file support for easy EtherNet/IP device setup
• Integrated StrideLinx VPN support
• User defined structure data types
• Tag-based programming with no pre-defined memory addresses
• Auto-discover local and remote PLC bases, Protos X field I/O, PS-AMC motion controllers and GS series drives
• Advanced "fill-in-the-blank" instructions including application specific commands
• Variable communications instructions for on-the-fly connection changes
• Helpful Data view, I/O view, Graph view, and histogram dialogs for insight into system performance
• Task Manager for increased efficiency
• Run-time editing
• ProNET networking for easy CPU data sharing
• Project file and user documentation stored in CPU
• Tag database export to C-more HMI
• Tag I/O reassignment to simplify offline configuration
• Easy project conversion to/from each PLC in family
• Project and database compare feature
• Web server and mobile access

FREE Software

PS-AMC - Enhanced motion control exclusively for Productivity systems

The PS-AMC motion controller is designed to work effortlessly with select Productivity CPUs. The AMC provides accurate, synchronized, motion control on up to four axes and is easily configured within Productivity Suite using built-in motion instructions.

Starting at

$331.00
