Detection light grids are perfect for sensing objects at random positions as they pass through the target area, with simple NO/NC selectable discrete outputs. Multi-beam photoeye arrays detect presence anywhere within the controlled height of the sensor array. (Not for use as safety light curtains)
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Detection Light Grids
Category Selection
Non-safety detection light grids, also known as light curtains, are optoelectronic sensors used in industrial automation for a variety of non-safety related tasks, such as:
- Accurately counting objects passing through the light grid, such as products on a conveyor belt.
- Detecting the presence or absence of parts in a machine, ensuring proper operation, and preventing malfunctions.
- Identifying the edges of objects for tasks such as cutting, aligning, or sorting.
- Monitoring the flow of materials through a process to ensure smooth operation and prevent jams.
These devices from Micro Detectors, ReeR, and ProSense require a sender (emitter) and receiver, and may be sold as individual components or as a pair.
For part listings and specifications, go to Shop Now
Micro Detectors CX0 Series
Micro Detectors CX0 series detection light grids are easy to install and feature a fast response time with high accuracy and repeatability.
- Total crossbeam through all the optics
- Detection heights up to 160mm or 320mm
- 5mm or 10mm beam resolution (pitch) models
- Operating distance up to 6m (depending on model)
- Digital PNP output, N.O./N.C. configurable
- 16.8 to 30 VDC operating voltage
- Painted aluminum housing
- Teach-in adjustment
- Sold as sender/receiver pairs
- IP67 protection rating
Starting at
$245.00
(CX0E1RP-10-016V)
Micro Detectors BX80 Series
Micro Detectors BX80 series detection light grids feature rugged thermoplastic housings and are designed for industrial applications such as conveyor belt monitoring, packaging machines, and access control.
- Detection height of 70mm, with 6mm beam resolution (pitch)
- Operating distance up to 2m
- Adjustable sensitivity
- NPN or PNP discrete output models, N.O./N.C. configurable
- LED status indicators of sender and receiver
- 12 to 24 VDC operating voltage
- Sender and receiver sold separately
- IP67 protection rating
Components starting at
$204.00
(BX80S-10-0H)

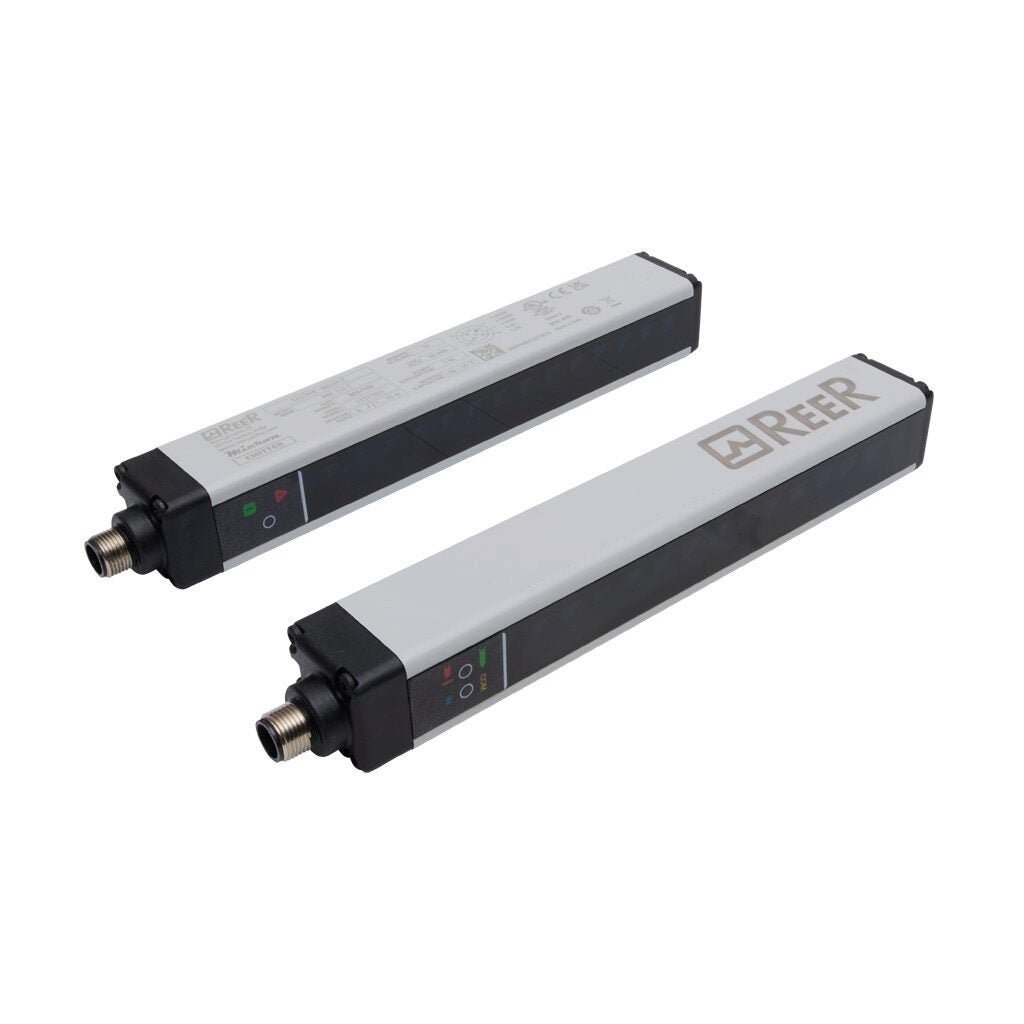

ReeR Micron Series
ReeR Micron series light grids with push-pull complementary outputs provide a simple way to determine whether an object is in the light grid's field of view. The outputs can be used to activate or stop a machine, or trigger an alarm.
- 120mm to 740mm detection heights
- 10mm or 30mm beam resolution (pitch) models
- Operating distance up to 10m (all models)
- 24 VDC operating voltage
- Two configurable push-pull switching outputs
- Rugged anodized aluminum housings
- Sold as sender/receiver pairs
- Purchase cables separately
- IP65/67 protection rating
Starting at
$375.00
(MI153-C)
ProSense FLG Series
New!
ProSense FLG series detection light grids offer a cost-effective solution for object detection, featuring a simple setup with no programming required. They have no dead zone on the full detection height and are suitable for a variety of applications, such as material handling, counting, and warehousing.
- 220mm to 1580mm detection heights
- 20mm or 40mm beam resolution
- 0.1 to 10m operating distance
- 24 VDC operating voltage
- Discrete NPN or PNP output
- Rugged aluminum housings
- Sold as sender/receiver pairs
- Purchase cables separately
- IP67 protection rating
Starting at
$308.00
(FLG-A46-0280)
