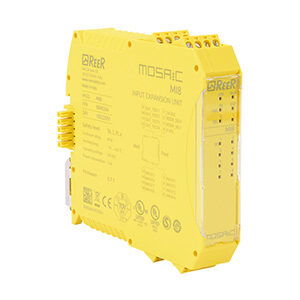

MOSAIC Safety Controller I/O Modules

Several styles of I/O can be added to a MOSAIC expandable system, including discrete monitoring inputs and outputs, analog inputs, and safety outputs for application-based requirements.

Safety I/O modules may offer (depending on model):

• Discrete safety input modules for safety devices such as interlocks, safety mats, bumpers, light curtains; include test outputs to monitor short circuits or overloads
• Discrete safety output modules for safety interlocks, OSSD outputs, and other general status and signal outputs; include inputs for Start/Restart interlock and EDM
• Combination discrete safety I/O modules that can accomplish functions of both inputs and outputs in one module
• Analog safety input modules for monitoring critical process variables

Common Features

• Connection to expandable master modules via MSC 5-way ReeR proprietary bus
• Removable terminal block plus screw contacts
• 35mm DIN rail mounting
