Vibration sensors help avoid unplanned downtime by providing vibration monitoring of typical industrial machinery for implementing predictive maintenance strategies. ProSense vibration sensors measure the RMS vibration velocity of the device to which they are attached.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Vibration Switches & Transmitters
Category Selection
Vibration monitoring, also referred to as machine condition monitoring, is used to detect industrial equipment vibration which may indicate a malfunction, pending failure, or process restriction. Vibration analysis can identify developing problems, allowing for timely and predictable scheduling of maintenance before major damage or failure, and production downtime.
Vibration sensors can also measure vibration as a process variable; for example, material handling systems looking for an impact when something is moved or placed. They can be used to determine the running status and/or condition of rotating equipment such as pumps, motors, compressors, paper machines, rolling mills, machine tools, and gearboxes.
Features
- MEMS-based sensors provide DIN ISO 10816 standard vibration sensing
- Vibration velocity ranges of 0 to 25 mm/s RMS or 0 to 50 mm/s RMS
- 10 to 1000 Hz frequency range
- Suitable for most industrial machines with motor speeds of 600 to 3000 RPM
For part listings and specifications, go to Shop Now

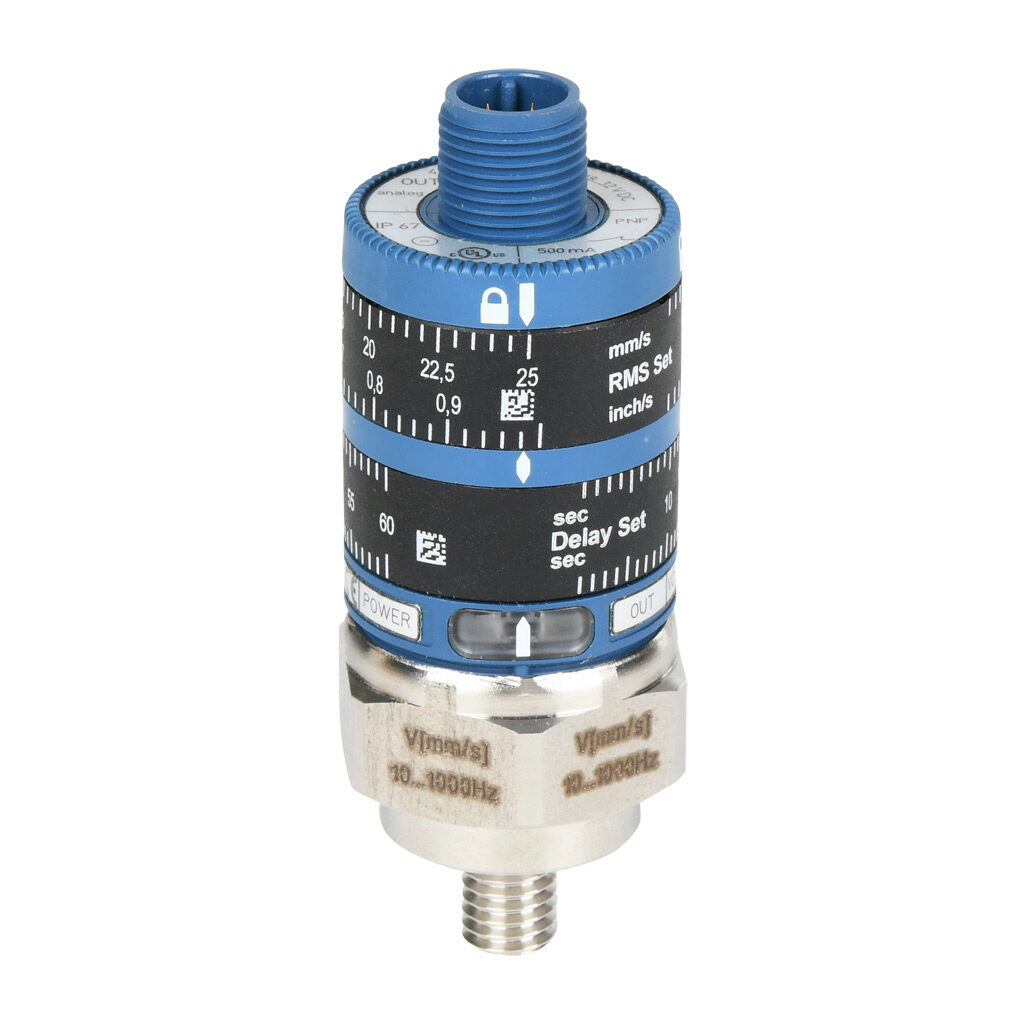

Vibration Switches / Transmitters
ProSense VCST series sensors conveniently provide a vibration switch and transmitter in a single unit. These MEMS-based sensors measure the RMS vibration velocity of the device to which they are attached, provide a switch output operating at a setpoint easily set with rotating setting rings, and supply an analog output for the actual vibration measurement.
- 18 to 32 VDC operating voltage range
- 500mA digital output PNP adjustable switch trip point and switch delay (1 to 60 seconds)
- Analog 4-20 mA output
- M8 x 1.25 male threads process connection
- 13 to 176°F (-25 to 80°C) operating temperature range
- Green and yellow LEDs indicate power and switching status
- IP67 environmental protection rating

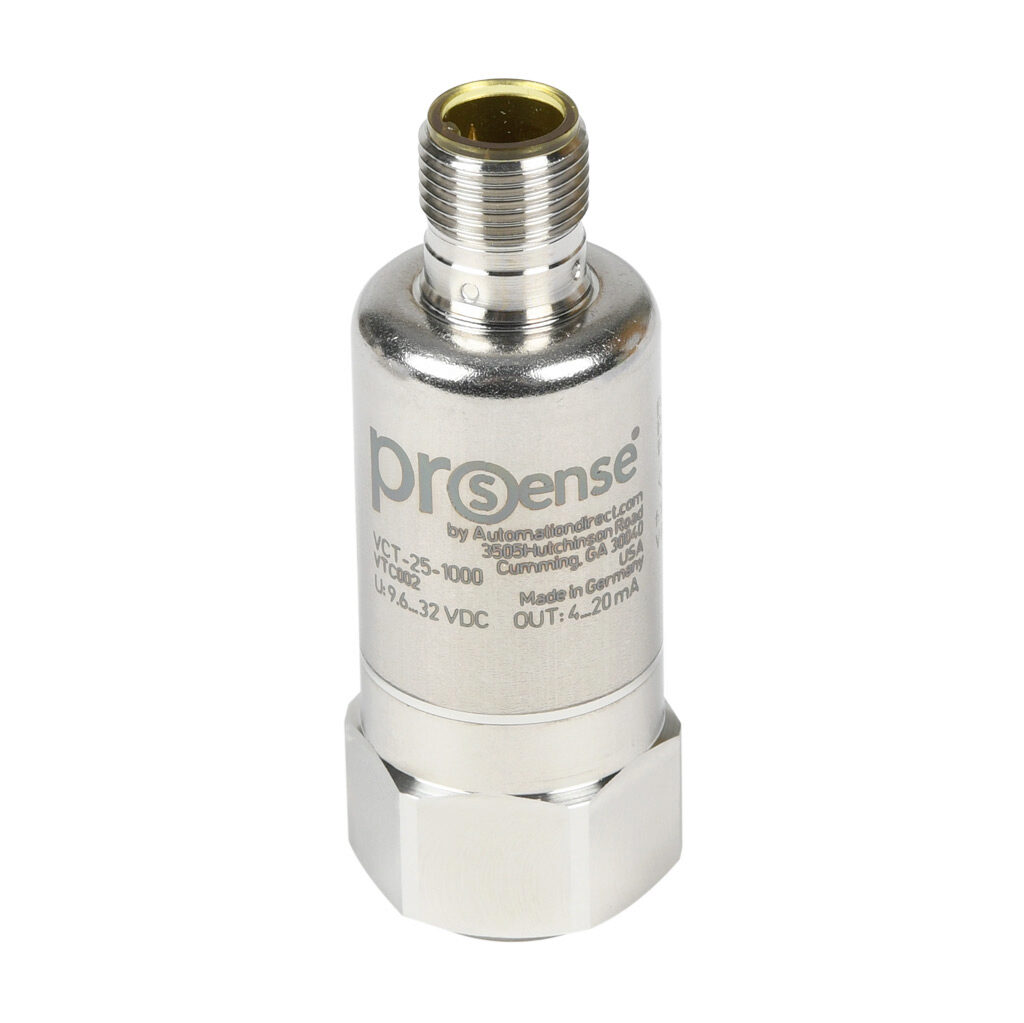

Harsh Duty Vibration Transmitters
ProSense VCT series vibration transmitters are ideal for harsh industrial applications. These stainless steel MEMS-based sensors offer a wide operating temperature range and IP67/68/69K protection (depending on IP rating of the cable used).
- 316L stainless steel construction
- 9.6 to 32 VDC operating voltage range
- Analog 4-20 mA output
- -22 to 257°F ( -30 to 125°C) operating temperature range
- ¼"-28 UNF / M8 or ¼"-28 UNF process connection (threaded adapters included)
