Stainless steel worm gearboxes (speed reducers) drive a load at a reduced ratio of motor speed, with housings suitable for food and beverage applications. Output torque is increased by that same ratio; horsepower is unchanged (less efficiency losses).
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Stainless Steel Worm Gearboxes
Category Selection
Worm gearboxes (speed reducers) are mechanical power transmission components that utilize a worm pinion (or screw) that is coupled with a round toothed gear (or worm wheel). As a motor turns the worm pinion, its spirals will cause the worm wheel to turn and drive a load at a reduced ratio of the supplied motor speed. Worm gearboxes provide reliable speed reduction and increased torque with virtually no loss in horsepower.
These heavy-duty stainless steel models are intended for washdown and other corrosive environments.
For part listings and specifications, go to Shop Now

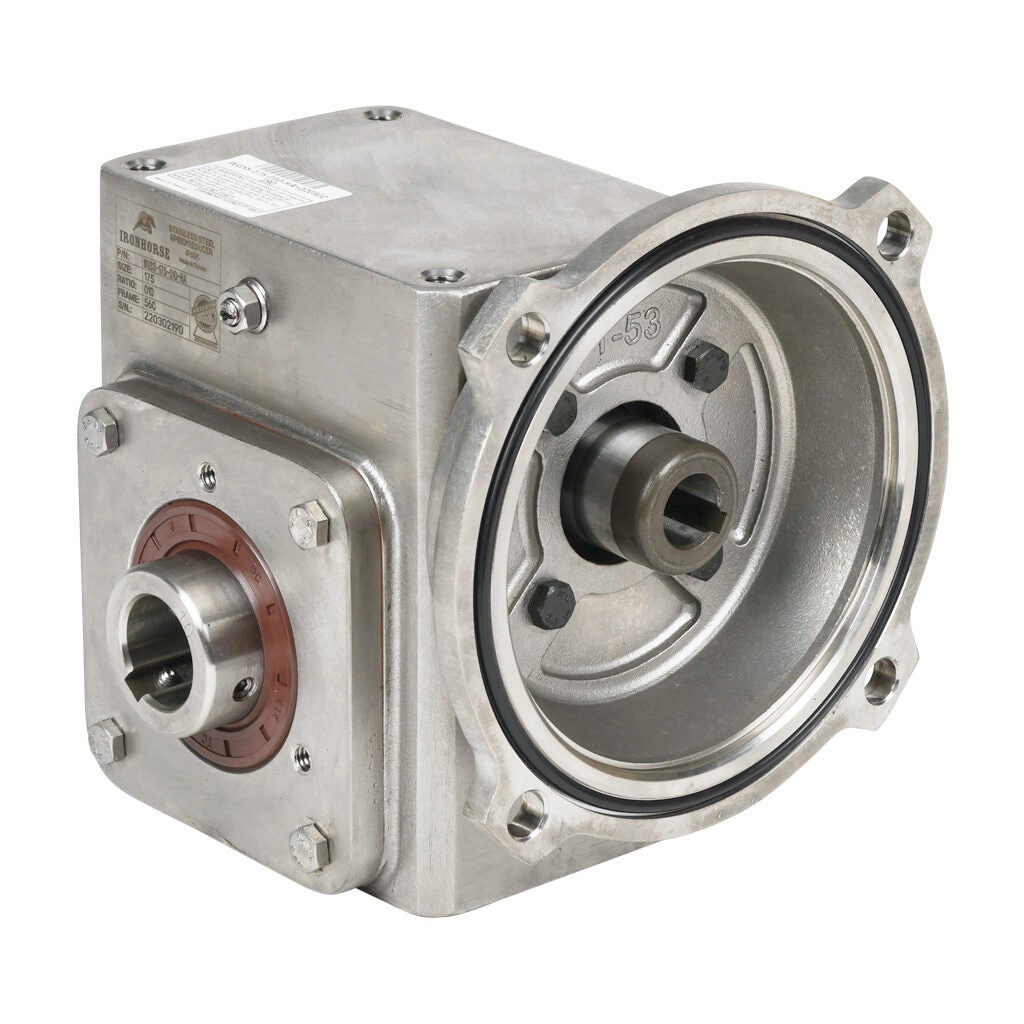

Stainless Steel Worm Gearboxes
These durable, right-angle worm gear reducers offer housings, covers, and flanges made of 304 stainless steel that provide protection from close-range high pressure, high temperature washdown.
- BEAG certified (Baking Equipment Assessment Group)
- IP69K rated
- 1.75" to 2.625" center distances (frame sizes)
- 5:1 to 60:1 ratios
- 56C and 145TC input faces

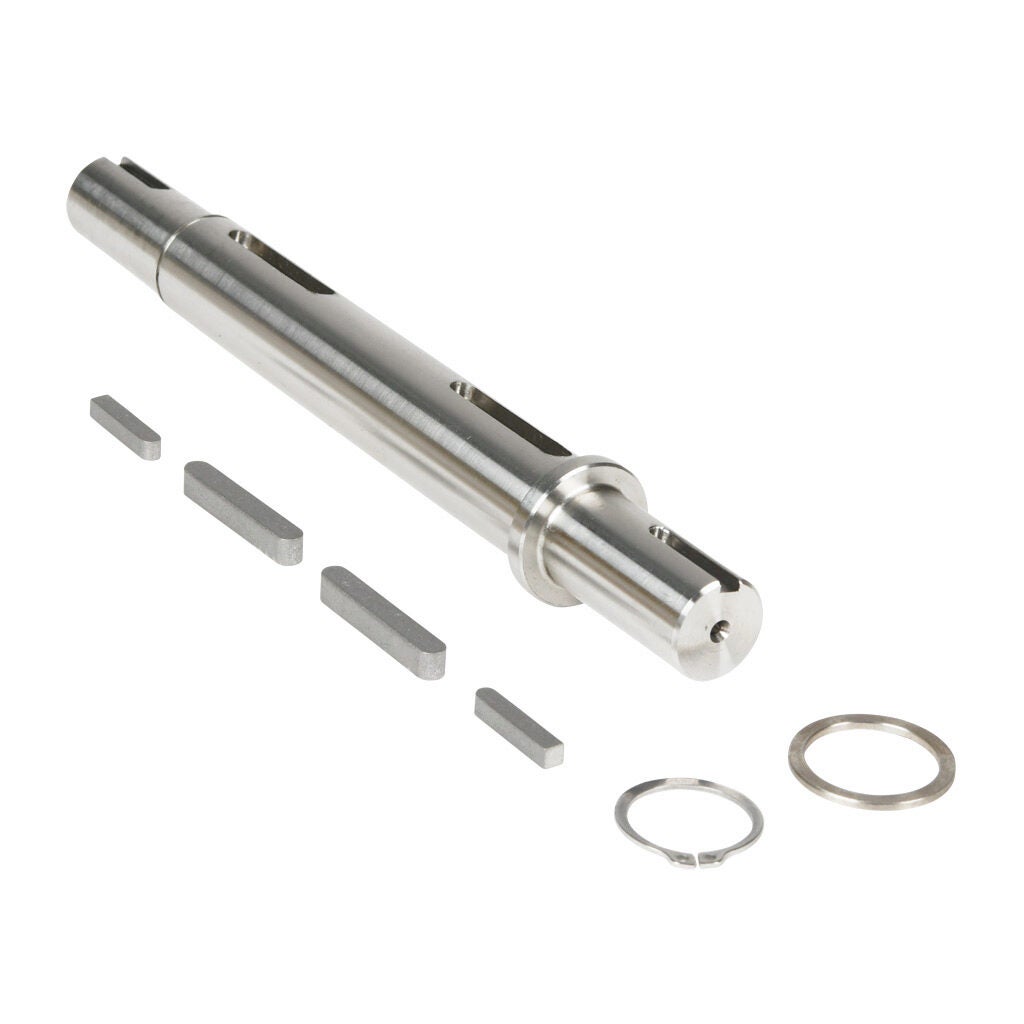

- Hollow shaft output with single or double output shaft options (accessories)
- Single and dual output shaft kits available
- Prefilled with Mobil CIBUS 460 H1 food grade lubricant
- Sealed internal bladder functions as a breather vent
- Input flange includes O-ring to prevent moisture intrusion
- Worm wheel constructed of CuSn12Ni2 bronze alloy with high-efficiency tooth profile
- Output seals are double-lipped, VITON
